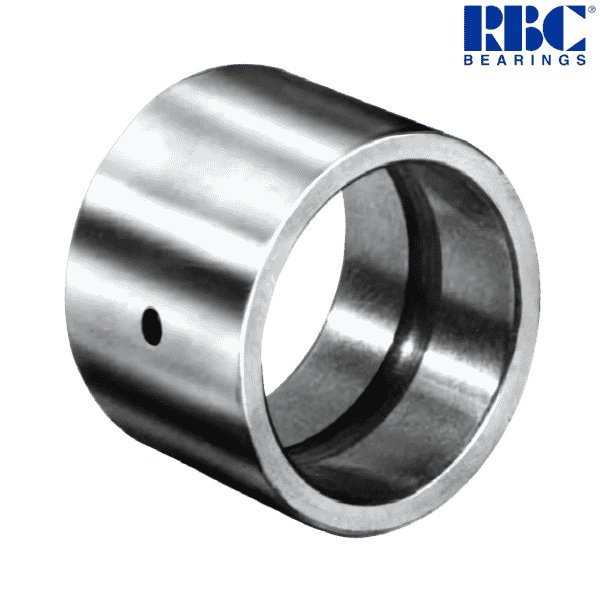

IR 7153 C RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - IR 7153 C RBC
Category - Inner Ring

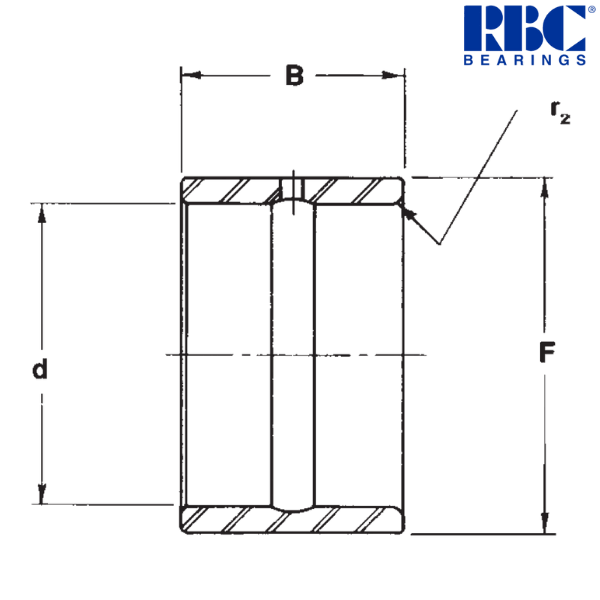

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) * - 0.5625 inch
Minimum Inside Diameter (d) - 0.5621 inch
Maximum Inside Diameter (d) - 0.5625 inch
Nominal Outside Diameter (F) * - 0.75 inch
Maximum Outside Diameter (F) - 0.7493 inch
Minimum Outside Diameter (F) - 0.7488 inch
Width (B) - 0.76 (+0.000 to -0.005) inch
Maximum Fillet Shaft (r2) - 0.04 inch
Approximate Weight - 0.041 lbs
Maximum Recomended Shaft Diameter (Slip Fit ISO g6) - 0.5622 inch
Minimum Recomended Shaft Diameter (Slip Fit ISO g6) - 0.5618 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 0.5631 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 0.5628 inch

Principal Dimensions & Load Ratings (Metric) :
Weight - 0.01860 kg

Other salient points to be noted :
* Sorted by outside diameter.

♦ ♦ Images are for representation purposes only
