Description
Brand - ZEN
Item Number - HYB 686 ZEN
Category - Hybrid bearings

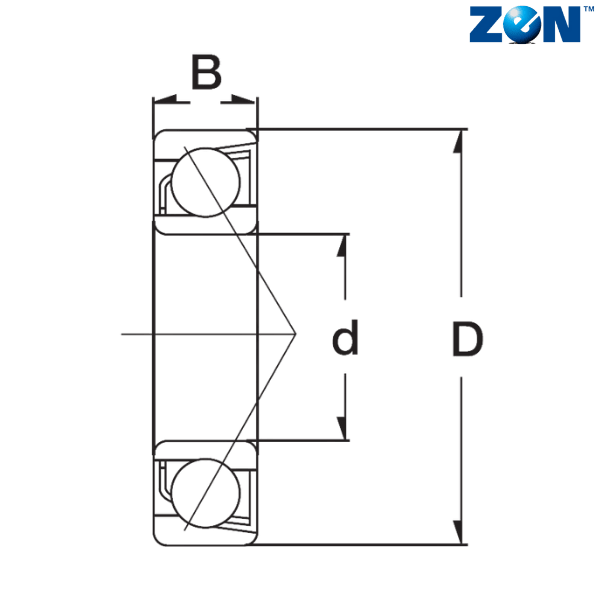

Inner Diameter (d) mm - 6
Outer Diameter (D) mm - 13
Width (B) mm - 3.5
Dynamic Load Rating (C) N - 649
Static Load Rating (C) N - 265
Approximate Weight (kg) - 0.003

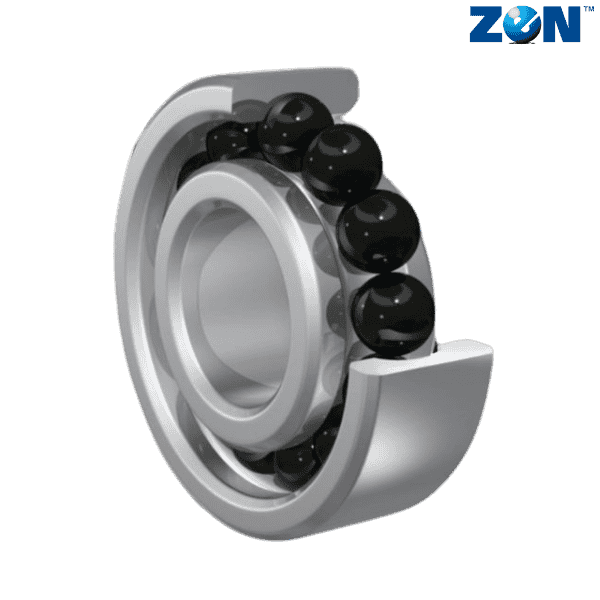

** Images are for representation purposes only
