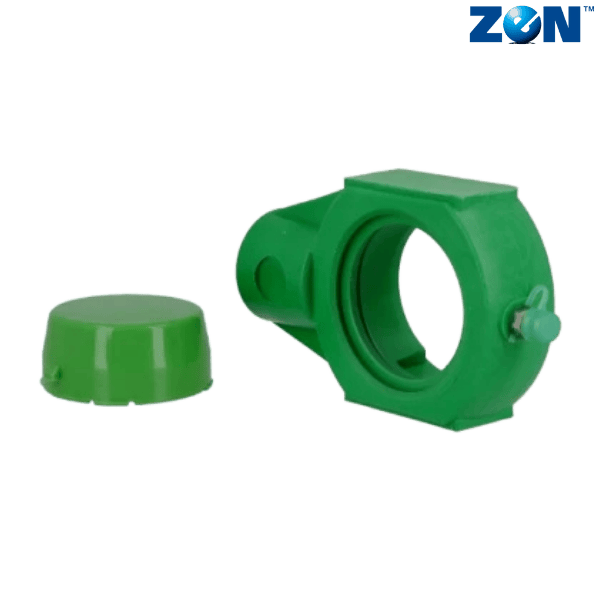

Description
Brand - ZEN
Item Number - HPL206 ZEN
Category - Thermoplastic Pillow Blocks (HPL)
Inner Diameter (d) mm - 30
w (mm) - 125
l (mm) - 27.5
h (mm) - 76
a (mm) - 90
s (mm) - M16
i (mm) - 40
b (mm) - 63
Weight (kg) - 0.27
Bearing - SUC206
** Images are for representation purposes only
