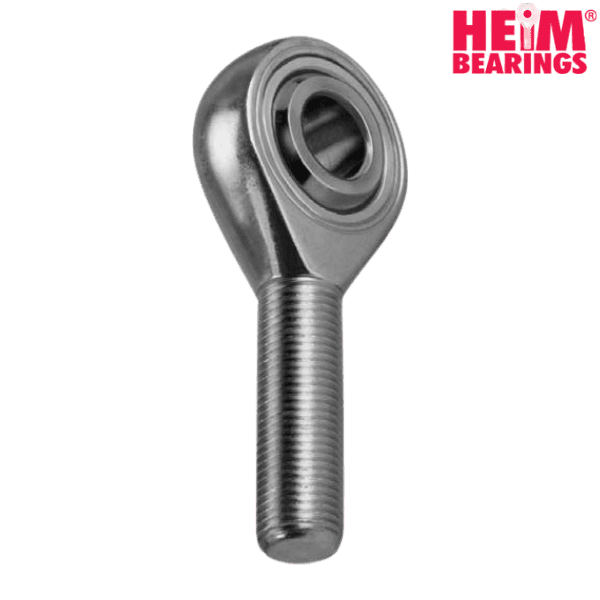

HME8M RBC HEIM

Brand - RBC HEIM
Item Number - HME8M RBC HEIM
Category - Rod Ends (Precision Aircraft Series)

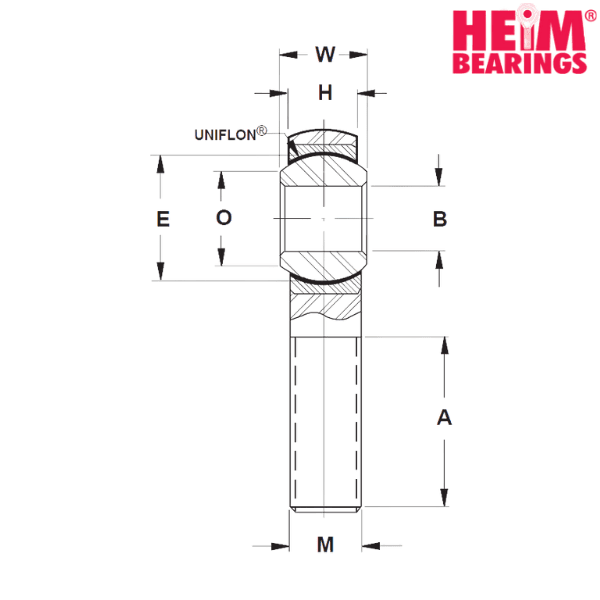

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 0.5 (+.0015 to - .0005) inch
Ball Width (W) - 0.625 (+.000 to - .005) inch
Housing Width (H) - 0.5 (+.005 to - .005) inch

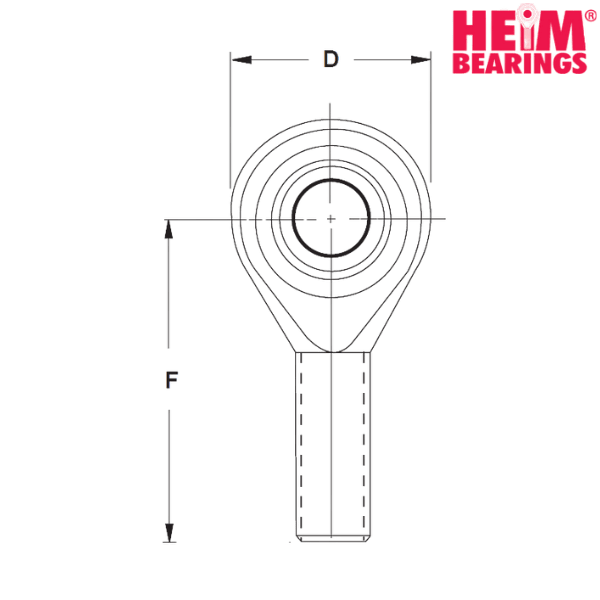

Head Diameter (D) - 1.312 (+.010 to - .010) inch
Length to Center of Ball (F) - 2.438 (+.010 to - .010) inch
Thread Length (A) - 1.5 (+.062 to - .031) inch
Thread Size (M) - 0.5000-20 (UNF-3A) inch
Ball Diameter (E) - 0.937 inch
Ball Flat Diameter (O) - 0.698 inch
Maximum Static Radial Load - 4925 lbf
Approximate Weight - 0.26 lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.118 kg

Other salient points to be noted :
• Outer Member = Aircraft quality carbon steel, magnetic particle inspected, with protective coating for corrosion resistance.
• Ball = 52100 Alloy steel, heat treated, chrome plated.
• Race = Aluminum.
• Liner = Self-lubricating UNIFLON ®
• Add letter “L” to prefix to indicate Left Hand thread. Example: HMLE4M
