HM6 RBC HEIM

Brand - RBC HEIM
Item Number - HM6 RBC HEIM
Category - Rod Ends (Precision Series)

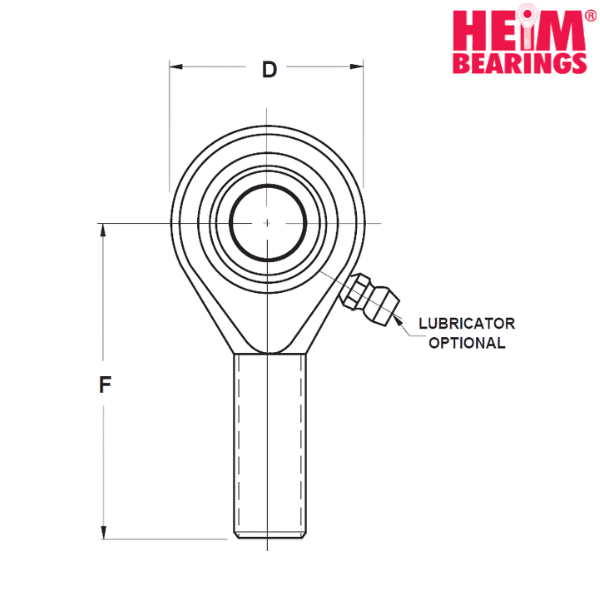

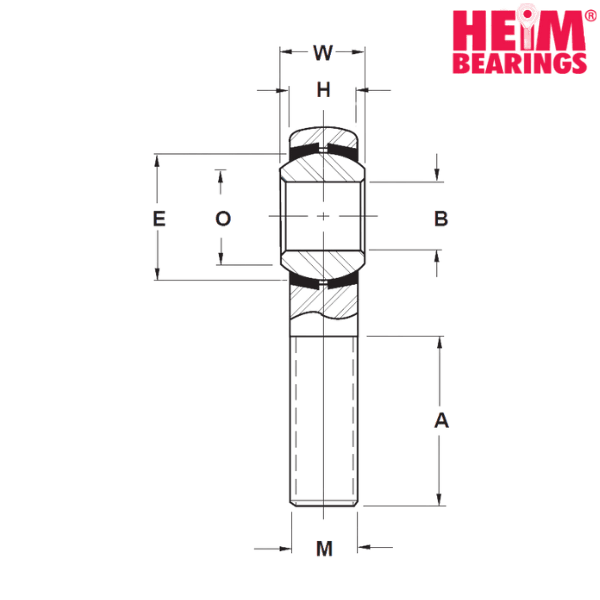

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 0.375 (+.0015 to - .0005) inch
Ball Width (W) - 0.5 (+.000 to - .005) inch
Housing Width (H) - 0.406 (+.005 to - .005) inch
Head Diameter (D) inch - 1 (+.010 to - .010) inch
Length to Center of Ball (F) - 1.938 (+.031 to - .031) inch
Thread Length (A) - 1.25 (+.062 to - .031) inch
Thread Size (M) - 0.3750-24 (UNF-3A) inch
Ball Diameter (E) - 0.718 inch
Ball Flat Diameter (O) - 0.516 inch
Maximum Static Load - 4000 lbf **
Approximate Weight - 0.12 lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.0544 kg

Other salient points to be noted :
• Outer Member = Carbon steel, with protective coating for corrosion resistance.
• Ball = 52100 Alloy steel, heat treated, and chrome plated.
• Inserts = Brass.
• Add letter “L” to prefix to indicate Left Hand thread. Example: HML4

** Load ratings reflect loads without lubricator.

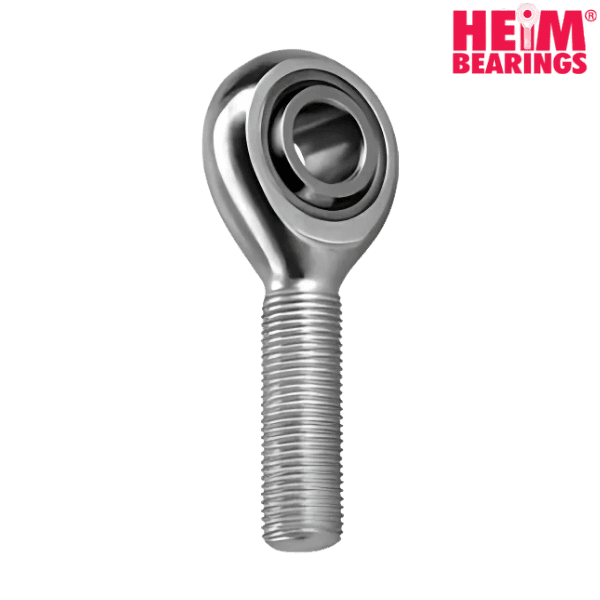

♦ ♦ Images are for representation purposes only
