Description
Brand - NADELLA
Item Number - HK6012 NADELLA
Category - Caged Needle Bushes (Oped Series HK)

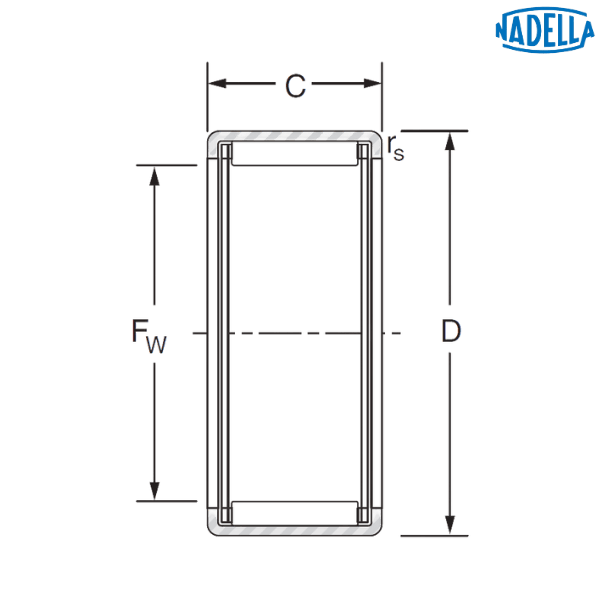

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 60 mm
Outer Dimeter (D) - 68 mm
Width (C) - 12 mm
Diameter of the Inner Raceway (Fw) - 60 mm
Minimum Chamfer Dimension (rs) - 1 mm
Dynamic Load Rating (C) - 17.2 kN
Static Load Rating (C0) - 31.2 kN
Speed Limit with Grease - 3400 rpm
Speed Limit with Oil - 5200 rpm
Weight - 0.06 kg
Description of Prefix:
HK - Caged Needle Bush, Open
♦♦ Images are for representation purposes only
