Description
Brand - ZEN
Item Number - HK5528 ZEN
Category - Needle Roller Bearing

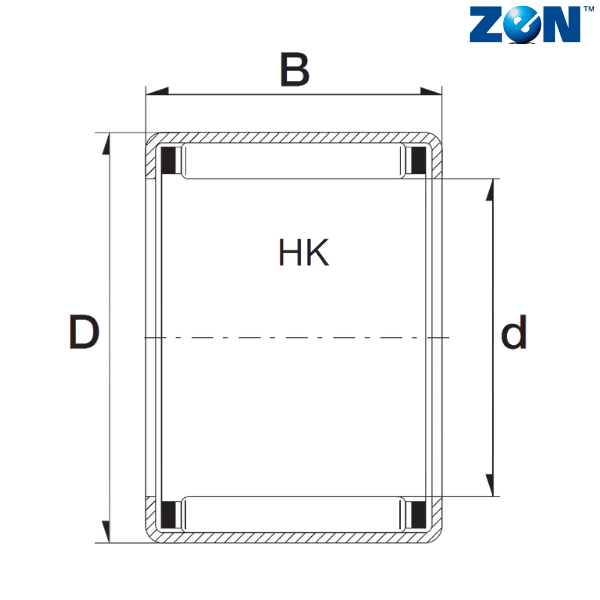

Inner Ring Dimension (d) mm - 55
Outer Ring Dimension (D) mm - 63
Width (B) mm - 28
Dynamic Load Rating (N) - 44000
Static Load Rating (N) - 103000
Limiting Speed - 4750
Weight (kg) - 0.105
Outer Ring Material - ST14 (Nr. 1.0338)
Inner Ring Material - ST14 (Nr. 1.0338)
Ball Material - AISI52100
** Images are for representation purposes only
