Description
Brand - ZEN
Item Number - HK5024-2RS ZEN
Category - Needle Roller Bearing

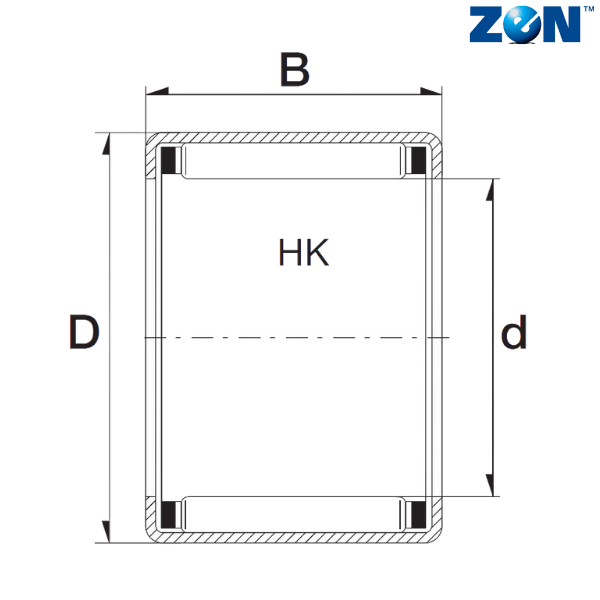

Inner Ring Dimension (d) mm - 50
Outer Ring Dimension (D) mm - 58
Width (B) mm - 22
Dynamic Load Rating (N) - 31000
Static Load Rating (N) - 63000
Limiting Speed - 5200
Weight (kg) - 0.076
Outer Ring Material - ST14 (Nr. 1.0338)
Inner Ring Material - ST14 (Nr. 1.0338)
Ball Material - AISI52100
Notes :
2RS - Rubber Seals
** Images are for representation purposes only
