Description
Brand - NADELLA
Item Number - HK5022RS NADELLA
Category - Caged Needle Bush with Seal
Compatible Internal Ring - JR45x50x25.5

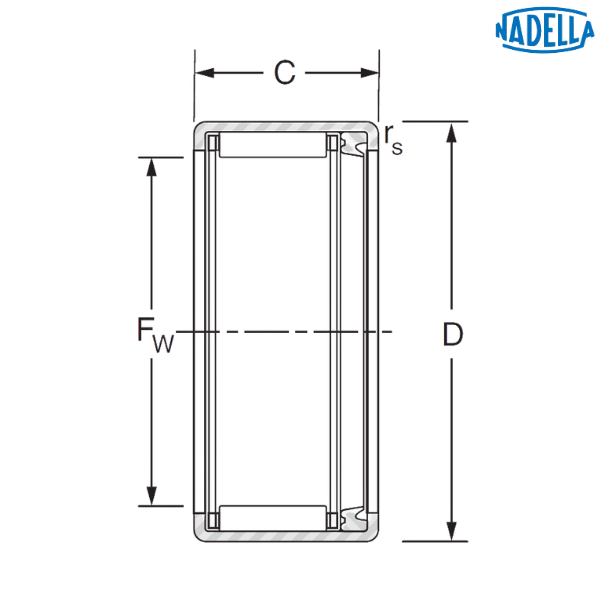

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 50 mm
Diameter of the Inner Raceway (Fw) - 50 mm
Outer Diameter (D) - 58 mm
Width (C) - 22 mm
Minimum Width (C3) - 1
Minimum Chamfer Dimension (rs) - 28.8 mm
Dynamic Load Rating (C) - 56.6 kN
Static Load Rating (C0) - 3900 kN
Speed Limit with Grease - 3900 rpm
Weight - 0.097 kg
Description of Suffixes and Prefixes :
HK - Caged Needle Bush, Open
RS - Seal on One Side
♦ ♦ Images are for representation purposes only
