Description
Brand - NADELLA
Item Number - HK4518RS NADELLA
Category - Caged Needle Bush with Seal
Compatible Internal Ring - JR40x45x20.5

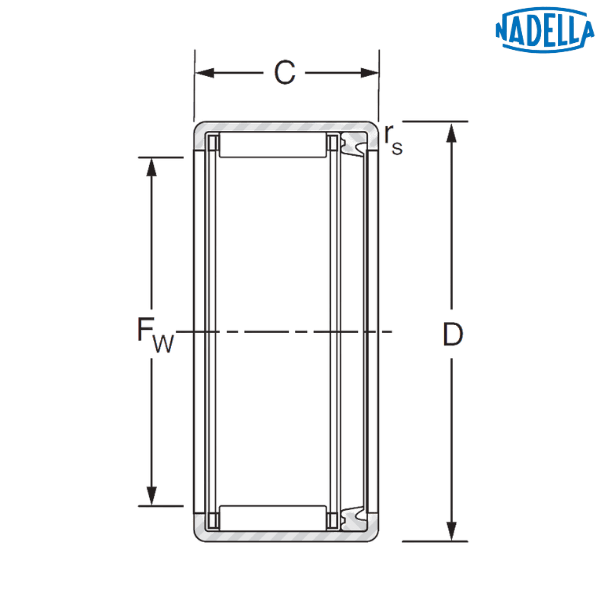

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 45 mm
Diameter of the Inner Raceway (Fw) - 45 mm
Outer Diameter (D) - 52 mm
Width (C) - 18 mm
Minimum Width (C3) - 1
Minimum Chamfer Dimension (rs) - 19.8 mm
Dynamic Load Rating (C) - 38.5 kN
Static Load Rating (C0) - 4300 kN
Speed Limit with Grease - 4300 rpm
Weight - 0.064 kg
Description of Suffixes and Prefixes :
HK - Caged Needle Bush, Open
RS - Seal on One Side
♦ ♦ Images are for representation purposes only
