Description
Brand - NADELLA
Item Number - HK4018RS NADELLA
Category - Caged Needle Bush with Seal
Compatible Internal Ring - JR35x40x20.5

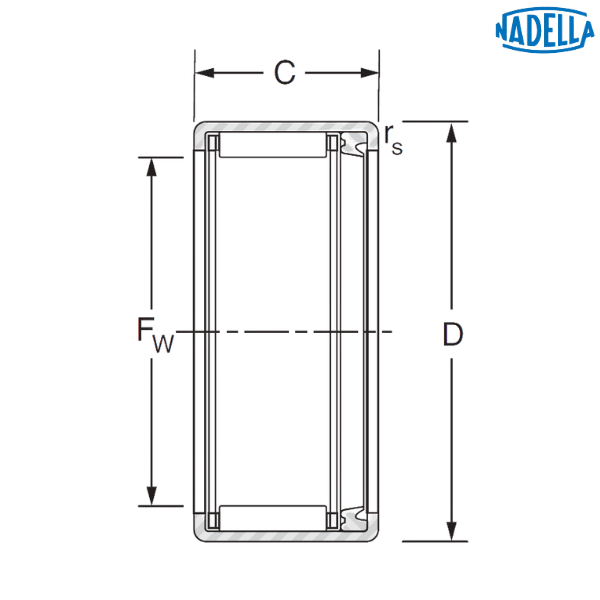

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 40 mm
Diameter of the Inner Raceway (Fw) - 40 mm
Outer Diameter (D) - 47 mm
Width (C) - 18 mm
Minimum Width (C3) - 1
Minimum Chamfer Dimension (rs) - 18.9 mm
Dynamic Load Rating (C) - 34.8 kN
Static Load Rating (C0) - 4900 kN
Speed Limit with Grease - 4900 rpm
Weight - 0.057 kg
Description of Suffixes and Prefixes :
HK - Caged Needle Bush, Open
RS - Seal on One Side
