Description
Brand - ZEN
Item Number - HK4016 ZEN
Category - Needle Roller Bearing

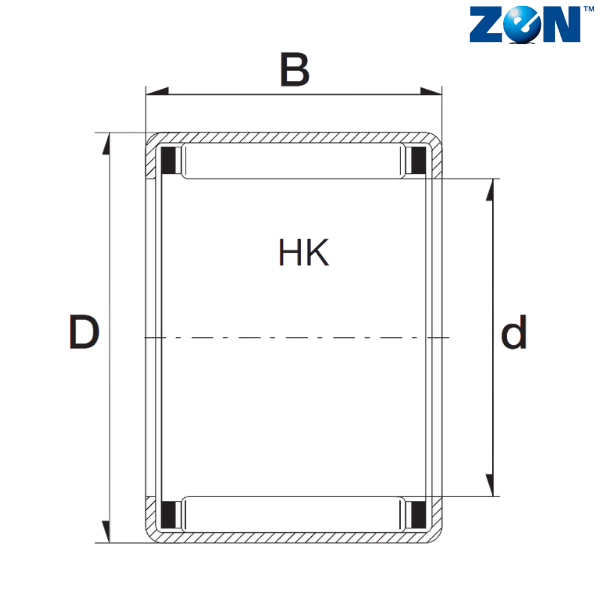

Inner Ring Dimension (d) mm - 40
Outer Ring Dimension (D) mm - 47
Width (B) mm - 16
Dynamic Load Rating (N) - 20000
Static Load Rating (N) - 38500
Limiting Speed - 6400
Weight (kg) - 0.039
Outer Ring Material - ST14 (Nr. 1.0338)
Inner Ring Material - ST14 (Nr. 1.0338)
Ball Material - AISI52100
** Images are for representation purposes only
