Description
Brand - NADELLA
Item Number - HK4012 NADELLA
Category - Caged Needle Bushes (Oped Series HK)

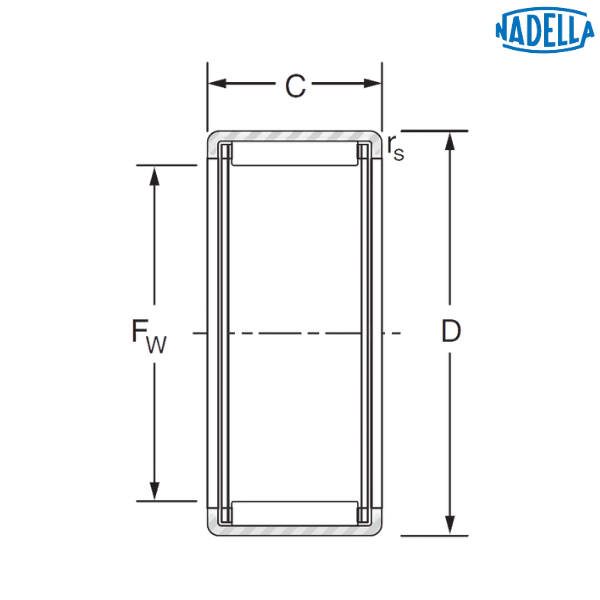

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 40 mm
Outer Dimeter (D) - 47 mm
Width (C) - 12 mm
Diameter of the Inner Raceway (Fw) - 40 mm
Minimum Chamfer Dimension (rs) - 1 mm
Dynamic Load Rating (C) - 14.7 kN
Static Load Rating (C0) - 25.3 kN
Speed Limit with Grease - 5200 rpm
Speed Limit with Oil - 7900 rpm
Weight - 0.033 kg
Description of Prefix:
HK - Caged Needle Bush, Open
