Description
Brand - ZEN
Item Number - HK3520-2RS ZEN
Category - Needle Roller Bearing

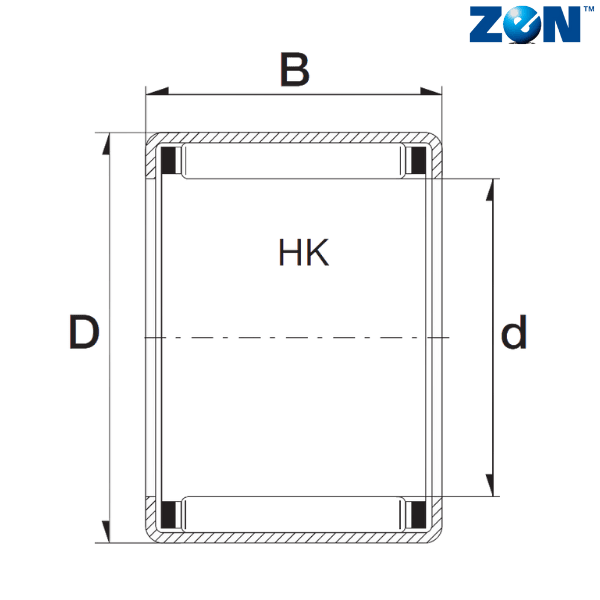

Inner Ring Dimension (d) mm - 35
Outer Ring Dimension (D) mm - 42
Width (B) mm - 18
Dynamic Load Rating (N) - 18700
Static Load Rating (N) - 46000
Limiting Speed - 7300
Weight (kg) - 0.041
Outer Ring Material - ST14 (Nr. 1.0338)
Inner Ring Material - ST14 (Nr. 1.0338)
Ball Material - AISI52100
Notes :
2RS - Rubber Seals
** Images are for representation purposes only
