Description
Brand - NADELLA
Item Number - HK3516.2RS NADELLA
Category - Caged Needle Bush with Seal
Compatible Internal Ring - JR30x35x17

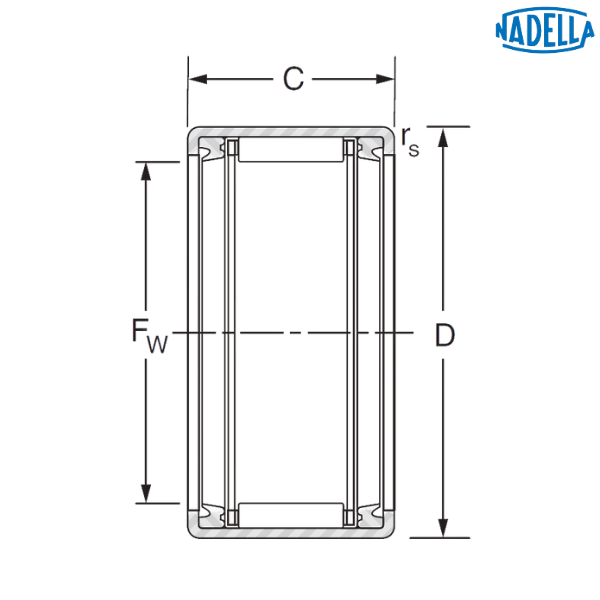

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 35 mm
Diameter of the Inner Raceway (Fw) - 35 mm
Outer Diameter (D) - 42 mm
Width (C) - 16 mm
Minimum Width (C3) - 1
Minimum Chamfer Dimension (rs) - 14.2 mm
Dynamic Load Rating (C) - 23.2 kN
Static Load Rating (C0) - 5500 kN
Speed Limit with Grease - 5500 rpm
Weight - 0.047 kg
Description of Suffixes and Prefixes :
HK - Caged Needle Bush, Open
.2RS - Seal on Each Side
♦ ♦ Images are for representation purposes only
