Description
Brand - ZEN
Item Number - HK3224 ZEN
Category - Needle Roller Bearing

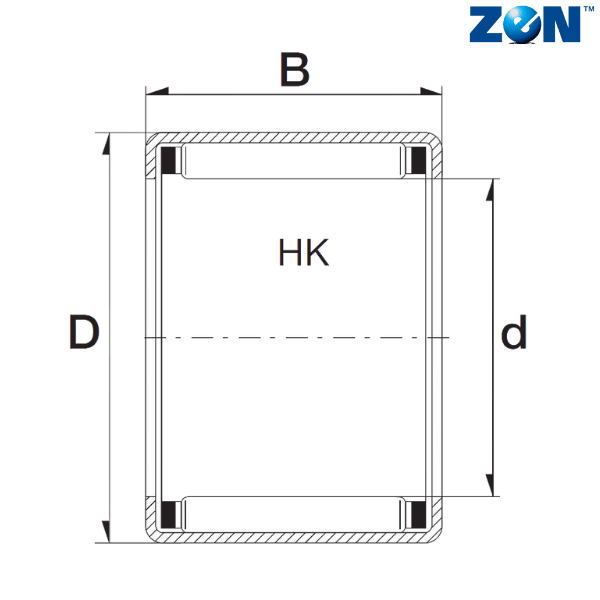

Inner Ring Dimension (d) mm - 32
Outer Ring Dimension (D) mm - 39
Width (B) mm - 24
Dynamic Load Rating (N) - 27500
Static Load Rating (N) - 54000
Limiting Speed - 7900
Weight (kg) - 0.049
Outer Ring Material - ST14 (Nr. 1.0338)
Inner Ring Material - ST14 (Nr. 1.0338)
Ball Material - AISI52100

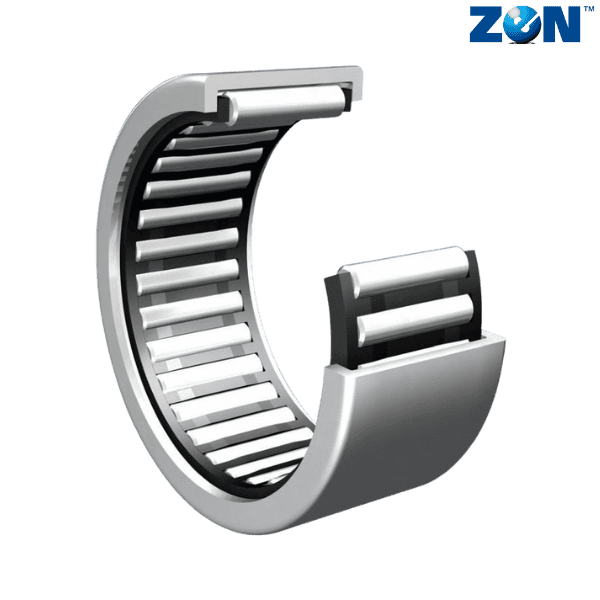

** Images are for representation purposes only
