Description
Brand - NADELLA
Item Number - HK3020.2RS NADELLA
Category - Caged Needle Bush with Seal
Compatible Internal Ring - JR25x30x20.5

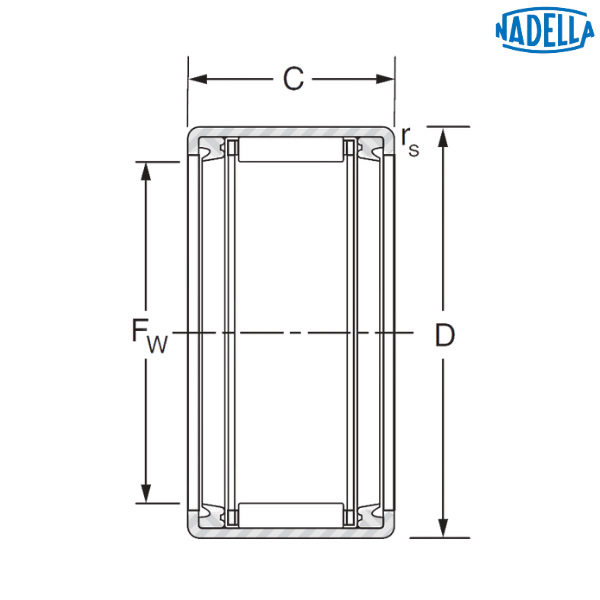

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 30 mm
Diameter of the Inner Raceway (Fw) - 30 mm
Outer Diameter (D) - 37 mm
Width (C) - 20 mm
Minimum Width (C3) - 1
Minimum Chamfer Dimension (rs) - 16.8 mm
Dynamic Load Rating (C) - 27.3 kN
Static Load Rating (C0) - 6500 kN
Speed Limit with Grease - 6500 rpm
Weight - 0.04 kg
Description of Suffixes and Prefixes :
HK - Caged Needle Bush, Open
.2RS - Seal on Each Side
♦ ♦ Images are for representation purposes only
