HK2820.2RS NADELLA

Brand - NADELLA
Item Number - HK2820.2RS NADELLA
Category - Caged Needle Bush with Seal
Compatible Internal Ring - JR22x28x20.5

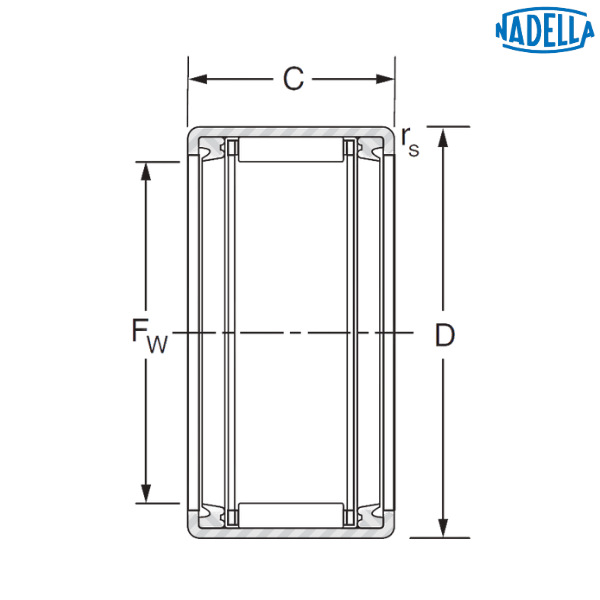

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 28 mm
Diameter of the Inner Raceway (Fw) - 28 mm
Outer Diameter (D) - 35 mm
Width (C) - 20 mm
Minimum Width (C3) - 1
Minimum Chamfer Dimension (rs) - 15.9 mm
Dynamic Load Rating (C) - 24.9 kN
Static Load Rating (C0) - 6900 kN
Speed Limit with Grease - 6900 rpm
Weight - 0.042 kg

Description of Suffixes and Prefixes :
HK - Caged Needle Bush, Open
.2RS - Seal on Each Side

♦ ♦ Images are for representation purposes only
