Description
Brand - NADELLA
Item Number - HK2520.2RS NADELLA
Category - Caged Needle Bush with Seal
Compatible Internal Ring - JR20x25x20.5

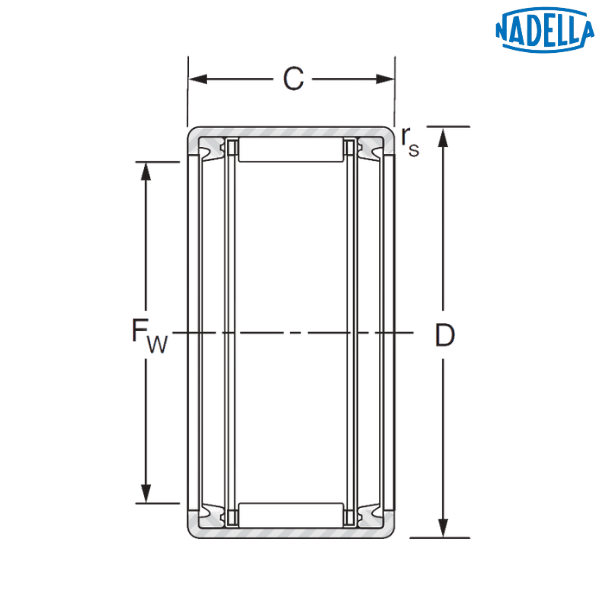

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 25 mm
Diameter of the Inner Raceway (Fw) - 25 mm
Outer Diameter (D) - 32 mm
Width (C) - 20 mm
Minimum Chamfer Dimension (rs) - 1 mm
Dynamic Load Rating (C) - 16.2 kN
Static Load Rating (C0) - 24.6 kN
Speed Limit with Grease - 7800 rpm
Weight - 0.033 kg
Description of Suffixes and Prefixes :
HK - Caged Needle Bush, Open
.2RS - Seal on Each Side
♦ ♦ Images are for representation purposes only
