Description
Brand - ZEN
Item Number - HK2220-2R5 ZEN
Category - Needle Roller Bearing

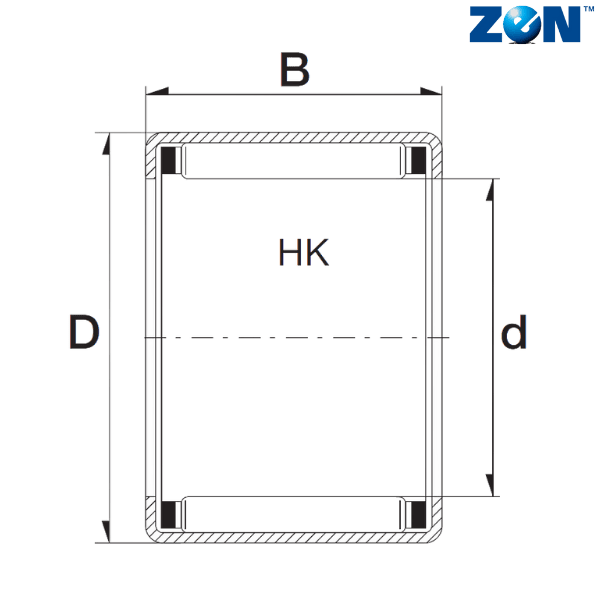

Inner Ring Dimension (d) mm - 22
Outer Ring Dimension (D) mm - 28
Width (B) mm - 18
Dynamic Load Rating (N) - 16500
Static Load Rating (N) - 29000
Limiting Speed - 11200
Weight (kg) - 0.024
Outer Ring Material - ST14 (Nr. 1.0338)
Inner Ring Material - ST14 (Nr. 1.0338)
Ball Material - AISI52100
Notes :
2RS - Rubber Seals
** Images are for representation purposes only
