Description
Brand - NADELLA
Item Number - HK2220.2RS NADELLA
Category - Caged Needle Bush with Seal
Compatible Internal Ring - JR17x22x23

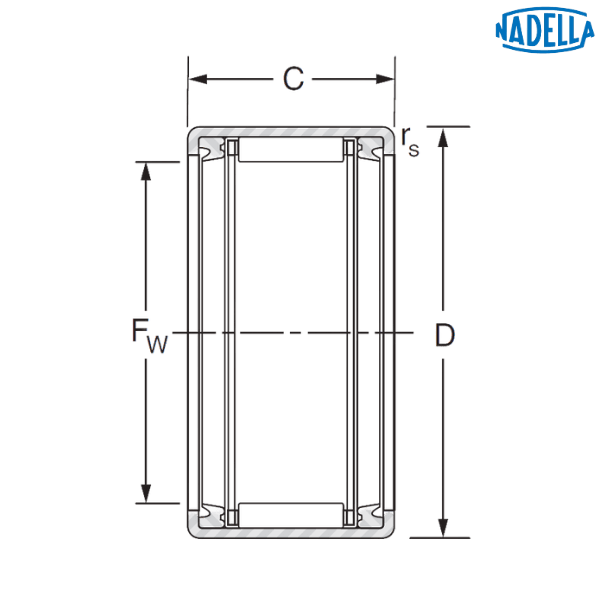

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 22 mm
Diameter of the Inner Raceway (Fw) - 22 mm
Outer Diameter (D) - 28 mm
Width (C) - 20 mm
Minimum Chamfer Dimension (rs) - 1 mm
Dynamic Load Rating (C) - 13.1 kN
Static Load Rating (C0) - 20.9 kN
Speed Limit with Grease - 8800 rpm
Weight - 0.026 kg
Description of Suffixes and Prefixes :
HK - Caged Needle Bush, Open
.2RS - Seal on Each Side
♦ ♦ Images are for representation purposes only
