Description
Brand - ZEN
Item Number - HK2216-OH ZEN
Category - Needle Roller Bearing

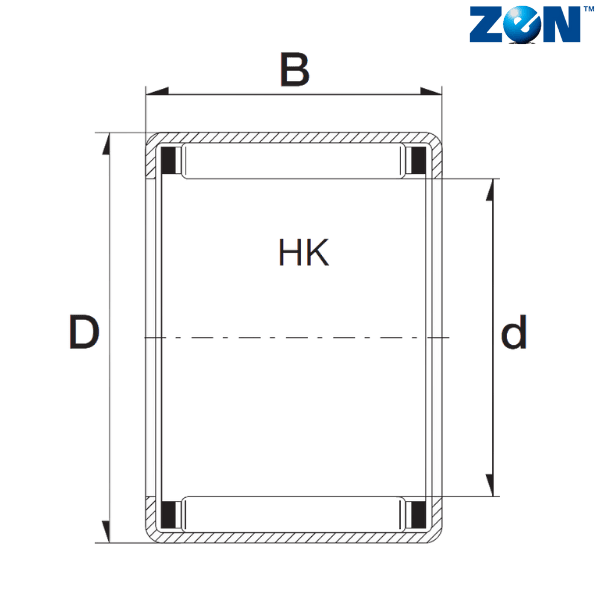

Inner Ring Dimension (d) mm - 22
Outer Ring Dimension (D) mm - 28
Width (B) mm - 16
Dynamic Load Rating (N) - 12500
Static Load Rating (N) - 21200
Limiting Speed - 12000
Weight (kg) - 0.024
Outer Ring Material - ST14 (Nr. 1.0338)
Inner Ring Material - ST14 (Nr. 1.0338)
Ball Material - AISI52100
** Images are for representation purposes only
