Description
Brand - NADELLA
Item Number - HK2216 NADELLA
Category - Caged Needle Bushes (Oped Series HK)

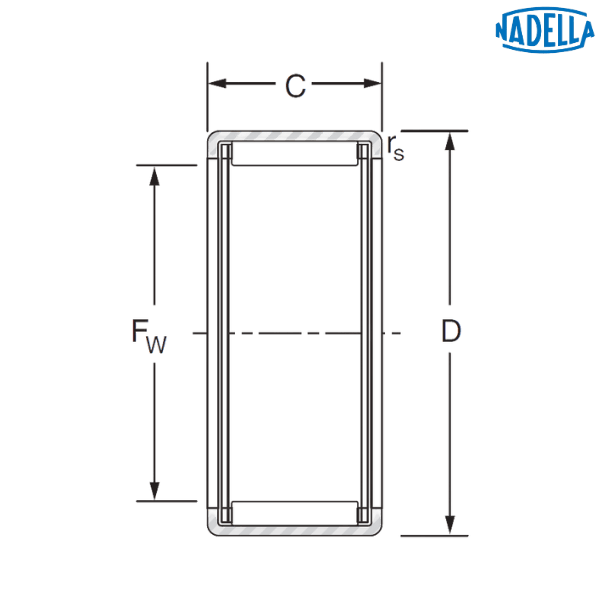

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 22 mm
Outer Dimeter (D) - 28 mm
Width (C) - 16 mm
Diameter of the Inner Raceway (Fw) - 22 mm
Minimum Chamfer Dimension (rs) - 1 mm
Dynamic Load Rating (C) - 13.1 kN
Static Load Rating (C0) - 20.9 kN
Speed Limit with Grease - 9600 rpm
Speed Limit with Oil - 15000 rpm
Weight - 0.022 kg
Compatible Internal Ring - JR17x22x16
Description of Prefix:
HK - Caged Needle Bush, Open
♦♦ Images are for representation purposes only
