Description
Brand - ZEN
Item Number - HK2030-ZW ZEN
Category - Needle Roller Bearing

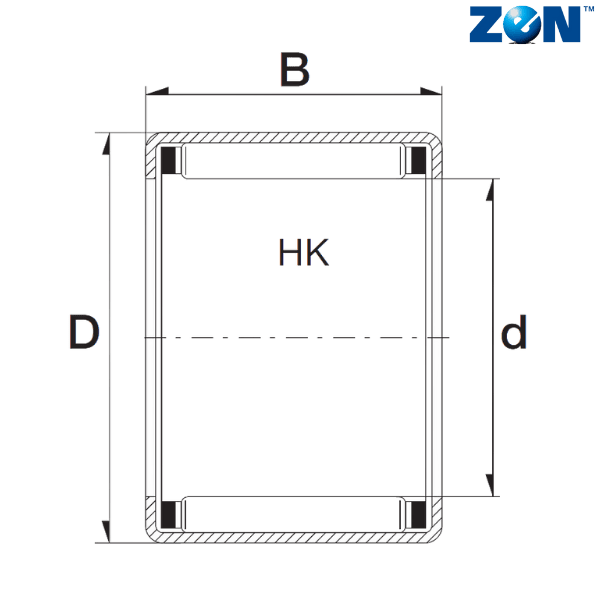

Inner Ring Dimension (d) mm - 20
Outer Ring Dimension (D) mm - 26
Width (B) mm - 30
Dynamic Load Rating (N) - 21800
Static Load Rating (N) - 40000
Limiting Speed - 12200
Weight (kg) - 0.035
Outer Ring Material - ST14 (Nr. 1.0338)
Inner Ring Material - ST14 (Nr. 1.0338)
Ball Material - AISI52100
Notes :
W - Crown Cage
** Images are for representation purposes only
