Description
Brand - NADELLA
Item Number - HK2020 NADELLA
Category - Caged Needle Bushes (Oped Series HK)

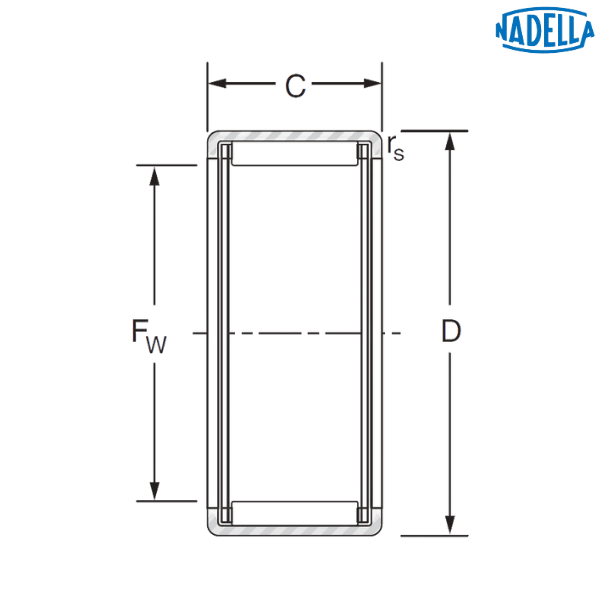

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 20 mm
Outer Dimeter (D) - 26 mm
Width (C) - 20 mm
Diameter of the Inner Raceway (Fw) - 20 mm
Dynamic Load Rating (C) - 15.9 kN
Static Load Rating (C0) - 26.2 kN
Speed Limit with Grease - 11000 rpm
Speed Limit with Oil - 16000 rpm
Weight - 0.025 kg
Compatible Internal Ring - JR17x20x20.5
Description of Prefix:
HK - Caged Needle Bush, Open
♦♦ Images are for representation purposes only
