Description
Brand - NADELLA
Item Number - HK2018RS NADELLA
Category - Caged Needle Bush with Seal
Compatible Internal Ring - JR17x20x20.5

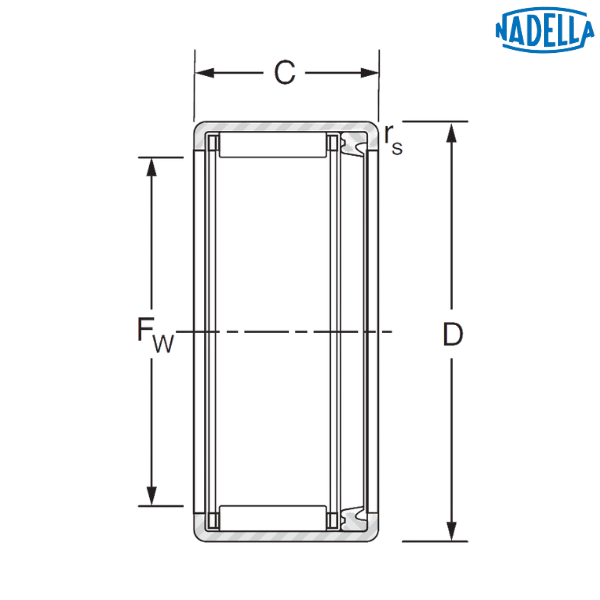

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 20 mm
Diameter of the Inner Raceway (Fw) - 20 mm
Outer Diameter (D) - 26 mm
Width (C) - 18 mm
Minimum Chamfer Dimension (rs) - 1 mm
Dynamic Load Rating (C) - 12.4 kN
Static Load Rating (C0) - 18.9 kN
Speed Limit with Grease - 9700 rpm
Weight - 0.025 kg
Description of Suffixes and Prefixes :
HK - Caged Needle Bush, Open
RS - Seal on One Side
♦ ♦ Images are for representation purposes only
