Description
Brand - ZEN
Item Number - HK1614-RS ZEN

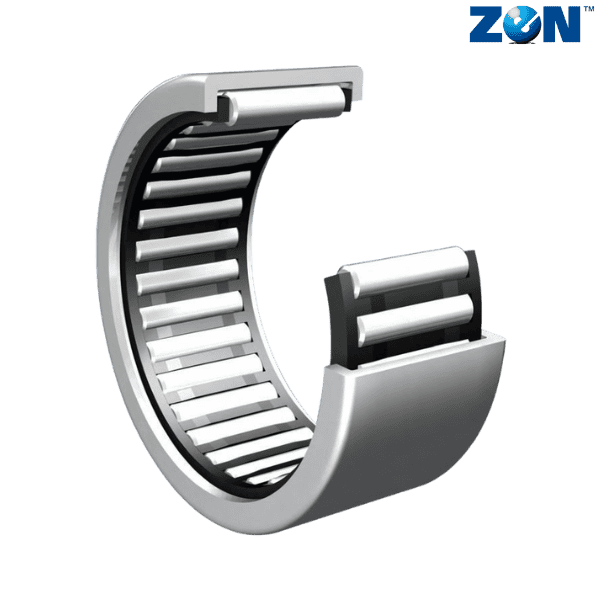

Category - Needle Roller Bearing

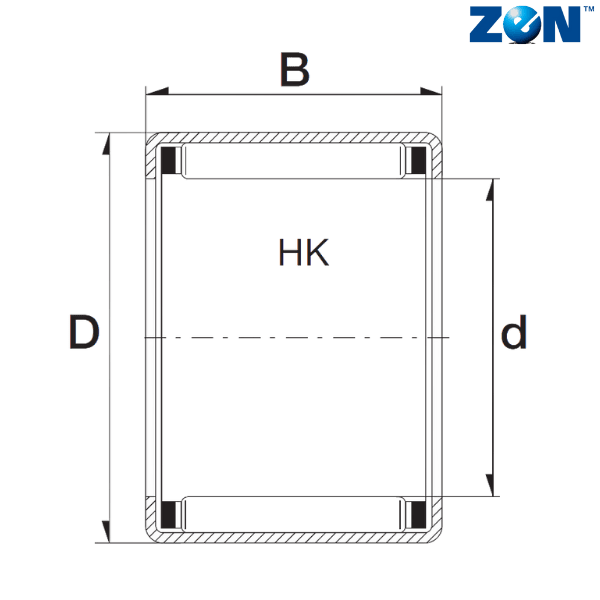

Inner Ring Dimension (d) mm - 16
Outer Ring Dimension (D) mm - 22
Width (B) mm - 14
Dynamic Load Rating (N) - 7600
Static Load Rating (N) - 9700
Limiting Speed - 14700
Weight (kg) - 0.013
Outer Ring Material - ST14 (Nr. 1.0338)
Inner Ring Material - ST14 (Nr. 1.0338)
Ball Material - AISI52100
Notes :
R - Rubber Seal
** Images are for representation purposes only
