Description
Brand - ZEN
Item Number - HK1522-ZW ZEN
Category - Needle Roller Bearing

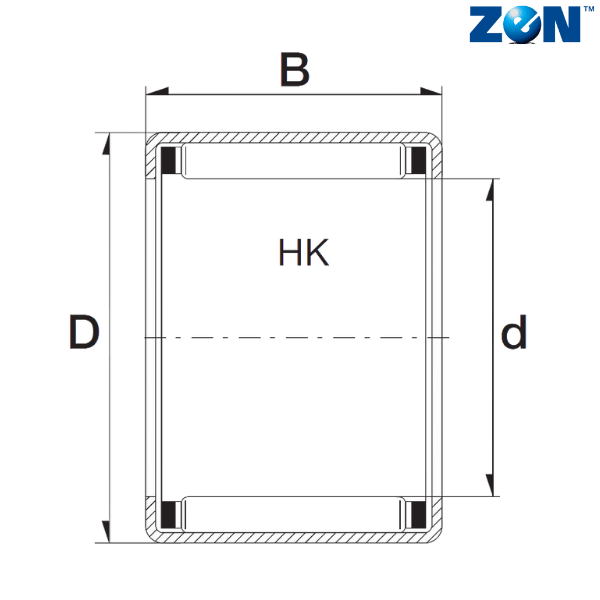

Inner Ring Dimension (d) mm - 15
Outer Ring Dimension (D) mm - 21
Width (B) mm - 22
Dynamic Load Rating (N) - 13400
Static Load Rating (N) - 19500
Limiting Speed - 15600
Weight (kg) - 0.02
Outer Ring Material - ST14 (Nr. 1.0338)
Inner Ring Material - ST14 (Nr. 1.0338)
Ball Material - AISI52100
** Images are for representation purposes only
