Description
Brand - NADELLA
Item Number - HK1516.2RS NADELLA
Category - Caged Needle Bush with Seal
Compatible Internal Ring - JR12x15x16.5

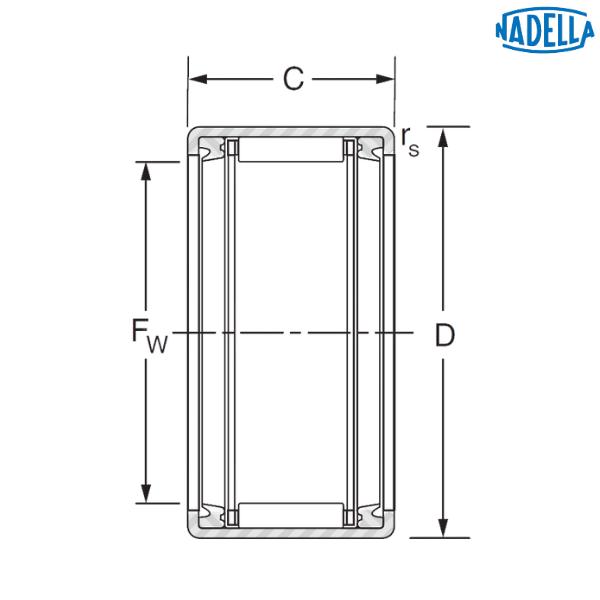

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 15 mm
Diameter of the Inner Raceway (Fw) - 15 mm
Outer Diameter (D) - 21 mm
Width (C) - 16 mm
Minimum Chamfer Dimension (rs) - 1 mm
Dynamic Load Rating (C) - 7.87 kN
Static Load Rating (C0) - 9.69 kN
Speed Limit with Grease - 13000 rpm
Weight - 0.019 kg
Description of Suffixes and Prefixes :
HK - Caged Needle Bush, Open
.2RS - Seal on Each Side
♦ ♦ Images are for representation purposes only
