Description
Brand - NADELLA
Item Number - HK1512 NADELLA
Category - Caged Needle Bushes (Oped Series HK)

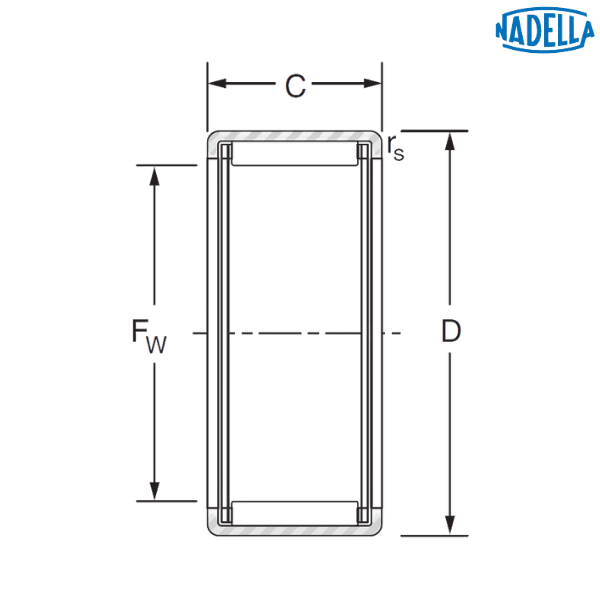

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 15 mm
Outer Dimeter (D) - 21 mm
Width (C) - 12 mm
Diameter of the Inner Raceway (Fw) - 15 mm
Minimum Chamfer Dimension (rs) - 1 mm
Dynamic Load Rating (C) - 7.49 kN
Static Load Rating (C0) - 9.11 kN
Speed Limit with Grease - 14000 rpm
Speed Limit with Oil - 21000 rpm
Weight - 0.012 kg
Compatible Internal Ring - JR12x15x12.5
Description of Prefix:
HK - Caged Needle Bush, Open
♦♦ Images are for representation purposes only
