Description
Brand - NADELLA
Item Number - HK1212 NADELLA
Category - Caged Needle Bushes (Oped Series HK)

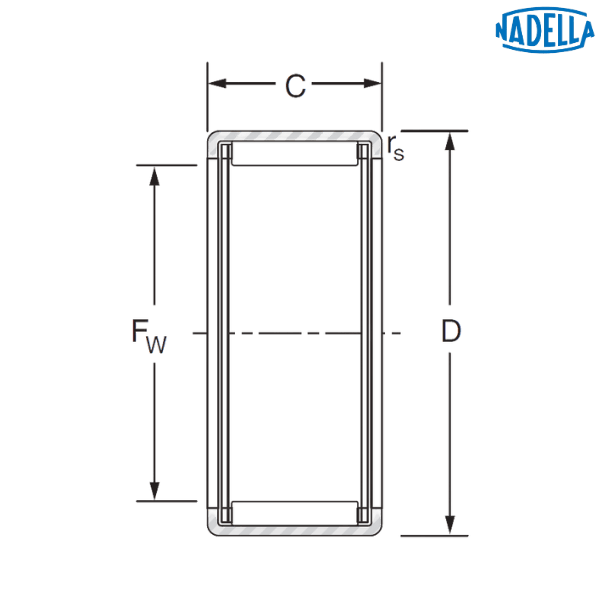

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 12 mm
Outer Dimeter (D) - 18 mm
Width (C) - 12 mm
Diameter of the Inner Raceway (Fw) - 12 mm
Minimum Chamfer Dimension (rs) - 1 mm
Dynamic Load Rating (C) - 6.61 kN
Static Load Rating (C0) - 7.29 kN
Speed Limit with Grease - 14000 rpm
Speed Limit with Oil - 22000 rpm
Weight - 0.01 kg
Compatible Internal Ring - JR8x12x12.5
Description of Prefix:
HK - Caged Needle Bush, Open
♦♦ Images are for representation purposes only
