Description
Brand - NADELLA
Item Number - HK0810RS NADELLA
Category - Caged Needle Bush with Seal

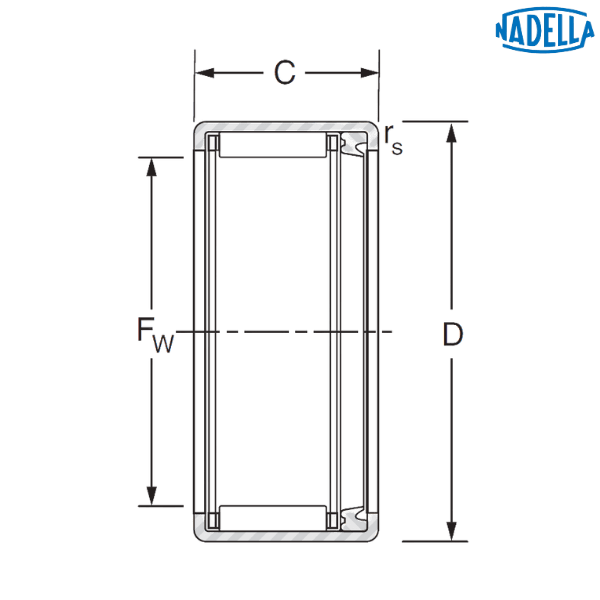

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 8 mm
Diameter of the Inner Raceway (Fw) - 8 mm
Outer Diameter (D) - 12 mm
Width (C) - 10 mm
Minimum Chamfer Dimension (rs) - 0.4 mm
Dynamic Load Rating (C) - 2.9 kN
Static Load Rating (C0) - 2.73 kN
Speed Limit with Grease - 20000 rpm
Weight - 0.004 kg
Description of Suffixes and Prefixes :
HK - Caged Needle Bush, Open
RS - Seal on One Side
♦ ♦ Images are for representation purposes only
