HH224340/HH224310 (HH224310EC) TIMKEN

Brand - TIMKEN
Item Number - HH224340/HH224310 (HH224310EC) TIMKEN
Also Known As - HH224340 - HH224310 (HH224310EC)
Category - Double Row Tapered Roller Bearing (2TS-DM Type)
Bore Diameter (d) mm - 107.95
Bore Diameter (d) inch - 4.25
Outer Diameter (D) mm - 212.725
Outer Diameter (D) inch - 8.375
Width (T) mm - 133.35
Width (T) inch - 5.25
Width (B) mm - 133.35
Width (B) inch - 5.25
Dynamic Radial Rating (C1) N - 1180000
Dynamic Radial Rating (C1) lbf - 266000
Factor (e) - 0.33
Factor (Y1) - 2.07
Factor (Y2) - 3.09
Dynamic Radial Rating (90 million revolutions) (C90) N - 176000
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 39600
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 98300
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 22100
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 307000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 69000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.79
Maximum Shaft Fillet Radius (R) mm - 1.5
Maximum Shaft Fillet Radius (R) inch - 0.06
Backing Shoulder Diameter (db) mm - 126
Backing Shoulder Diameter (db) inch - 4.96
Maximum Housing Fillet Radius (r) mm - 3.3
Maximum Housing Fillet Radius (r) inch - 0.13
Cup Frontface Backing Diameter (Da) mm - 192
Cup Frontface Backing Diameter (Da) inch - 7.56
Weight (kg) - 21.35
Weight (lbs) - 47.08
Outer Spacer - HH224310EC
Inner Part Number - HH224340
Outer Part Number - HH224310

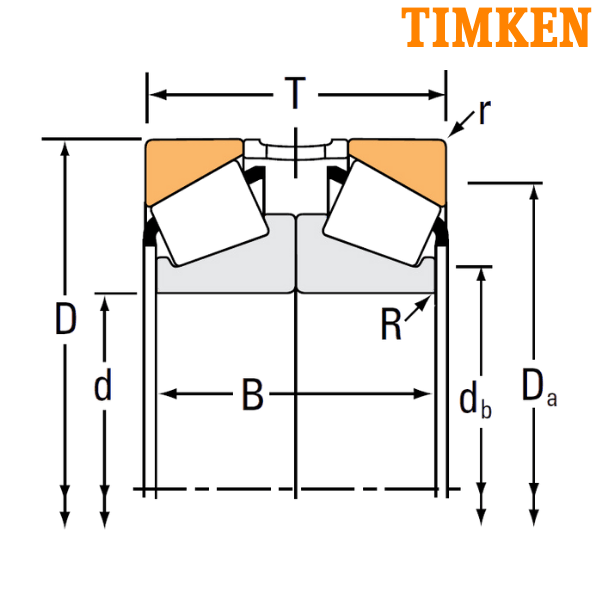

2TS-DM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Direct Mounting

** Images are for representation purposes only
