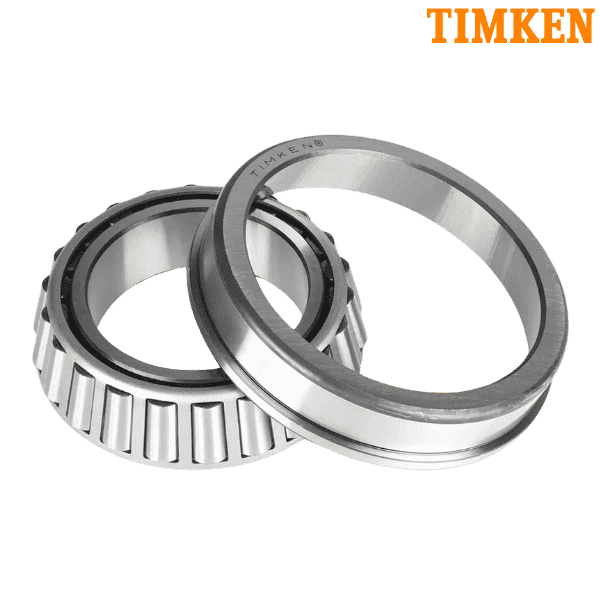

HH224340/HH224310-B TIMKEN

Brand - TIMKEN
Item Number - HH224340/HH224310-B TIMKEN
Also Known As - HH224340 - HH224310-B
Category - Single Row Tapered Roller Bearing (TSF Type)

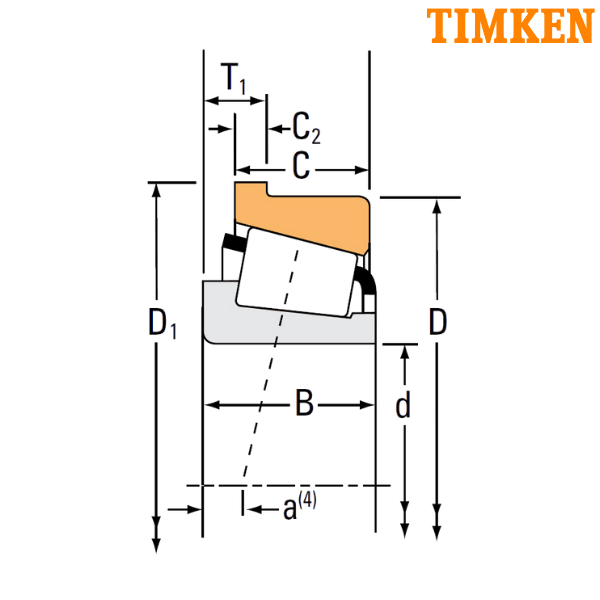

Bore Diameter (d) mm - 107.95
Bore Diameter (d) inch - 4.25
Outer Diameter (D) mm - 212.725
Outer Diameter (D) inch - 8.375
Width (T1) mm - 23.812
Width (T1) inch - 0.9375
Dynamic Load Rating (C1) N - 680000
Dynamic Load Rating (C1) lbf - 153000
Factor (e) - 0.33
Factor (Y) - 1.84
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 176000
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 39600
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 98300
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 22100
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.79
Basic Static Radial Load Rating (C0) N - 906000
Basic Static Radial Load Rating (C0) lbf - 204000
Cone Width (B) mm - 66.675
Cone Width (B) inch - 2.625
Cup Width (C) mm - 53.975
Cup Width (C) inch - 2.125
Effective Center Location (a) mm - -18.8
Effective Center Location (a) inch - -0.74
Outer Diameter of Outer Ring Flange (D1) mm - 223.733
Outer Diameter of Outer Ring Flange (D1) inch - 8.8084
Flange Width (C2) mm - 11.112
Flange Width (C2) inch - 0.4375

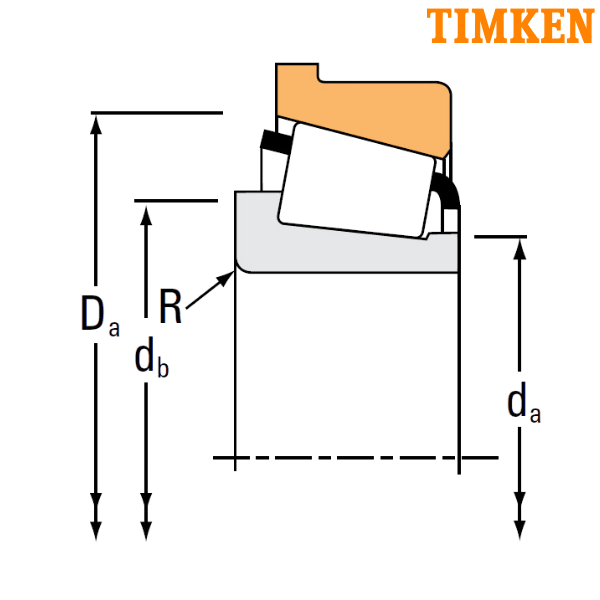

Maximum Shaft Fillet Radius (R) mm - 8
Maximum Shaft Fillet Radius (R) inch - 0.31
Cone Frontface Backing Diameter (da) mm - 126
Cone Frontface Backing Diameter (da) inch - 4.96
Cone Backface Backing Diameter (db) mm - 139
Cone Backface Backing Diameter (db) inch - 5.47
Cup Frontface Backing Diameter (Da) mm - 204
Cup Frontface Backing Diameter (Da) inch - 8.03
Geometry Factor (G1) - 366.6
Geometry Factor (G2) - 47.9
Geometry Factor (Cg) - 0.1182
Weight (kg) - 11.57
Weight (lbs) - 25.5
Inner Part Number - HH224340
Outer Part Number - HH224310-B
TSF - Single-Row Bearing with a Flange on the Outer Ring
