Description
Brand - ZEN
Item Number - HF1216 ZEN
Category - One-way Clutch Bearings (HF)

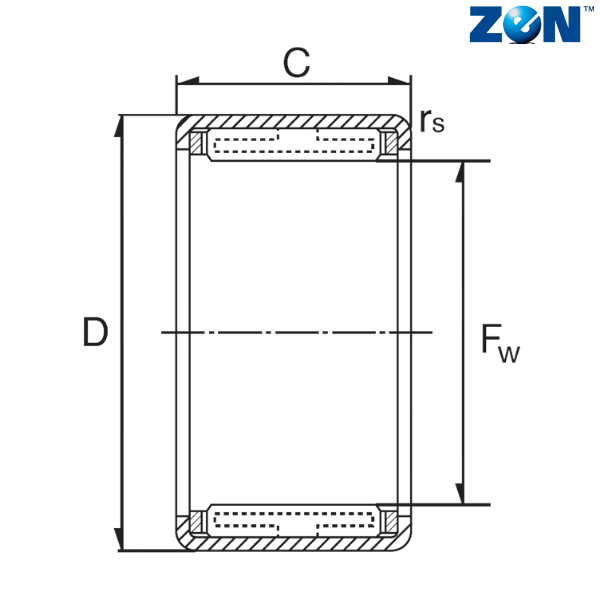

Inner Ring Dimension (Fw) mm - 12
Outer Ring Dimension (D) mm - 18
Width (C) mm - 16
Torque (Nm) - 12.2
Limiting Speed of Shaft (rpm) - 11000
Limiting Speed of Outer Ring (rpm) - 8000
Cup Bearing - HK1212
Weight (kg) - 0.011
Outer Ring Material - ST14 (Nr. 1.0338)
Rollers Material - AISI52100
Spring Material - Steel
** Images are for representation purposes only
