Description
Brand - ZEN
Item Number - HF1012-R ZEN
Category - One-way Clutch Bearings (HF)

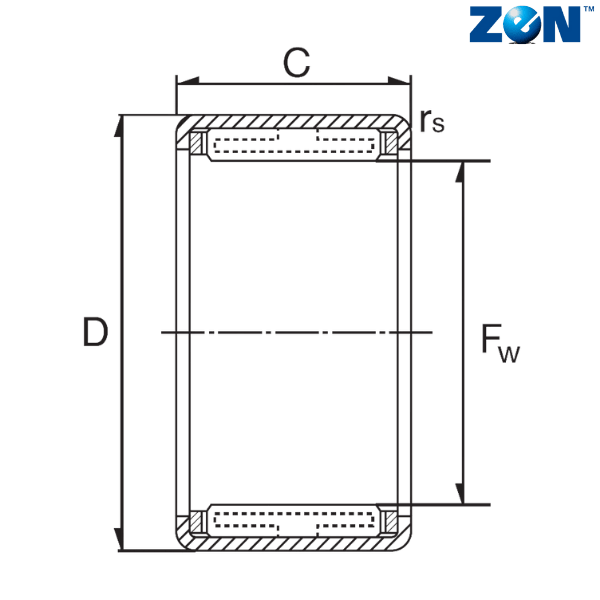

Inner Ring Dimension (Fw) mm - 10
Outer Ring Dimension (D) mm - 14
Width (C) mm - 12
Torque (Nm) - 5
Limiting Speed of Shaft (rpm) - 14000
Limiting Speed of Outer Ring (rpm) - 11000
Cup Bearing - HK1010
Weight (kg) - 0.004
Outer Ring Material - ST14 (Nr. 1.0338)
Rollers Material - AISI52100
Spring Material - Steel

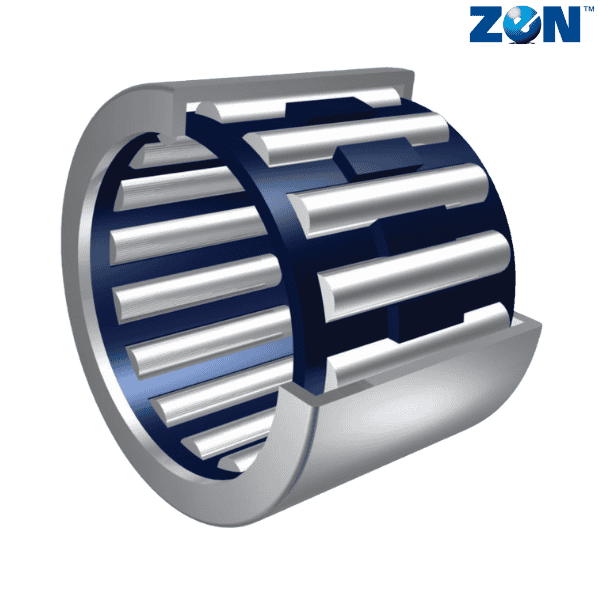

** Images are for representation purposes only
