Description
Brand - ZEN
Item Number - HF0812 ZEN
Category - One-way Clutch Bearings (HF)

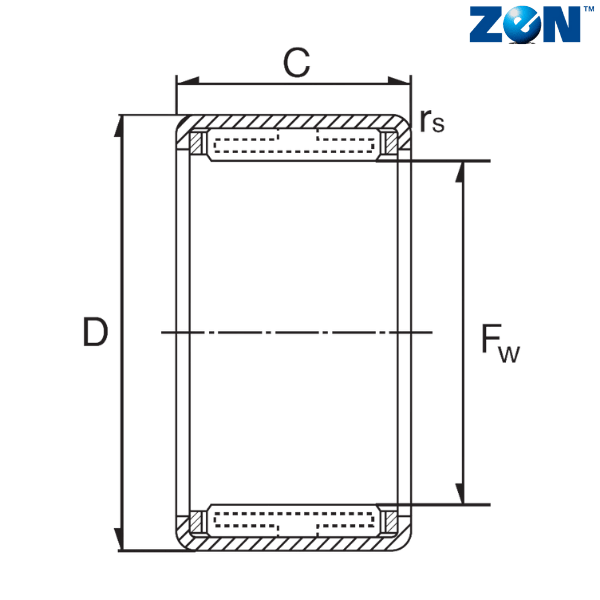

Inner Ring Dimension (Fw) mm - 8
Outer Ring Dimension (D) mm - 12
Width (C) mm - 12
Torque (Nm) - 3
Limiting Speed of Shaft (rpm) - 17000
Limiting Speed of Outer Ring (rpm) - 12000
Cup Bearing - HK0808
Weight (kg) - 0.0035
Outer Ring Material - ST14 (Nr. 1.0338)
Rollers Material - AISI52100
Spring Material - Steel

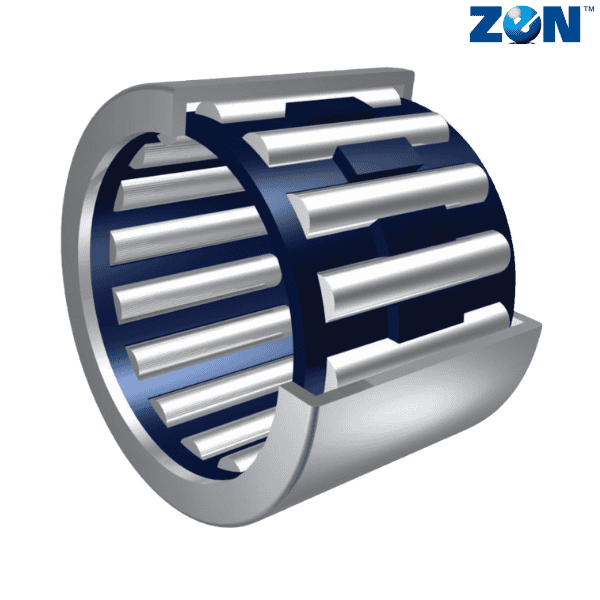

** Images are for representation purposes only
