Description
Brand - ZEN
Item Number - HF0612-KFR ZEN
Category - One-way Clutch Bearings (HF)

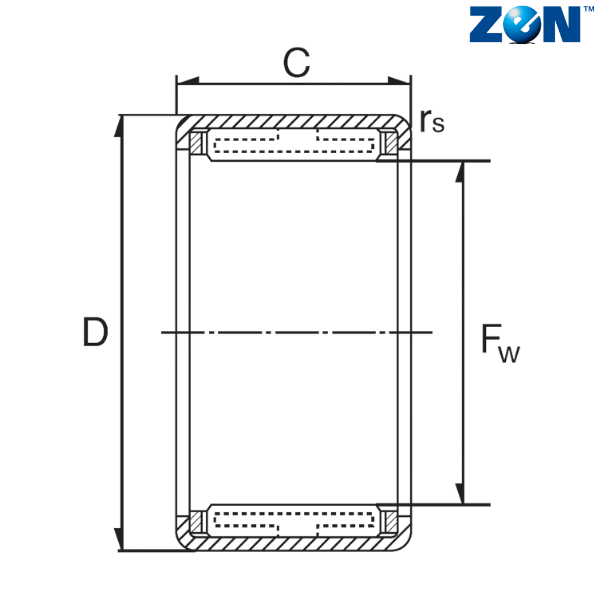

Inner Ring Dimension (Fw) mm - 6
Outer Ring Dimension (D) mm - 10
Width (C) mm - 12
Torque (Nm) - 0.5
Limiting Speed of Shaft (rpm) - 23000
Limiting Speed of Outer Ring (rpm) - 13000
Cup Bearing - HK0608
Weight (kg) - 0.003
Outer Ring Material - ST14 (Nr. 1.0338)
Rollers Material - AISI52100
Spring Material - Plastic

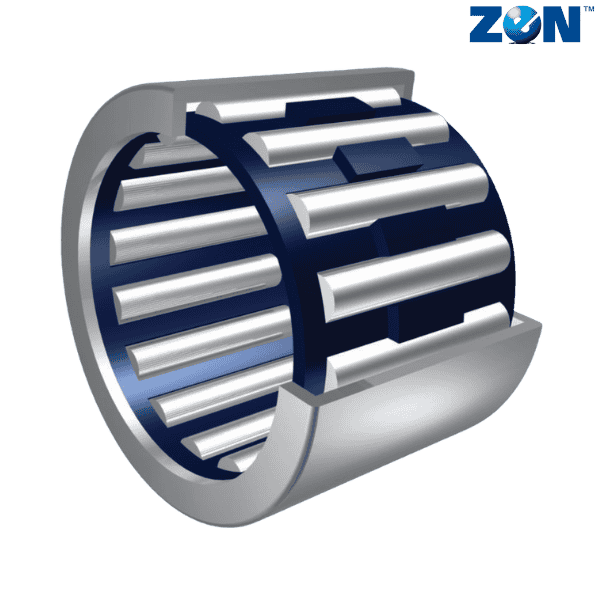

** Images are for representation purposes only
