Description
Brand - ZEN
Item Number - HF0406 ZEN
Category - One-way Clutch Bearings (HF)

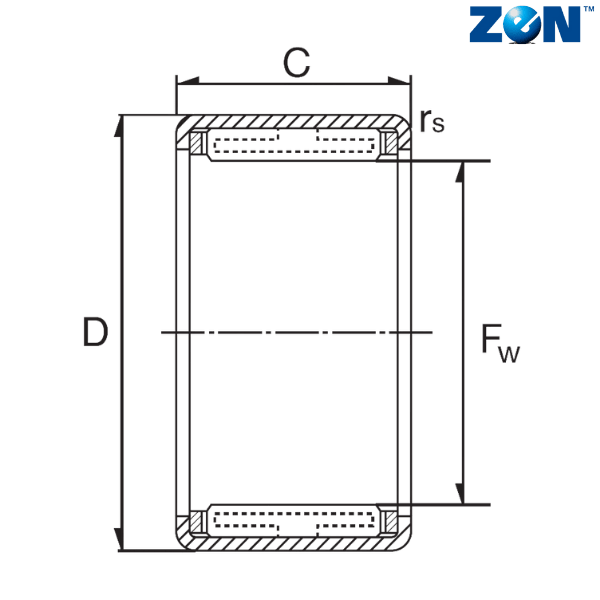

Inner Ring Dimension (Fw) mm - 4
Outer Ring Dimension (D) mm - 8
Width (C) mm - 6
Torque (Nm) - 0.34
Limiting Speed of Shaft (rpm) - 34000
Limiting Speed of Outer Ring (rpm) - 8000
Cup Bearing - HK0406
Weight (kg) - 0.001
Outer Ring Material - ST14 (Nr. 1.0338)
Rollers Material - AISI52100
Spring Material - Steel

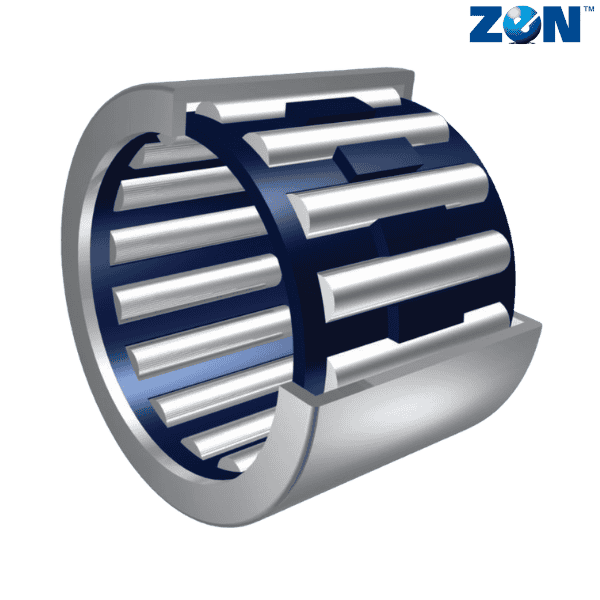

** Images are for representation purposes only
