Description
Brand - FAG
Item Number - HCM7013-CDLR-T-P4S-XL FAG
Category - Spindle Bearing
Weight (m) kg - 0.41
Inner Diameter (d) mm - 65
Outer Diameter (D) mm - 100
Width (B) mm - 18
Minimum Chamfer Dimension (rmin) mm - 1.1
Minimum Chamfer Dimension (r1min) mm - 0.6
Distance Ring Grooves (BN) mm - 2.8
Distance to Lubrication Hole (SN) mm - 10.4
Width of Lubricating Groove (SB) mm - 1.4
Contact angle (°) - 17

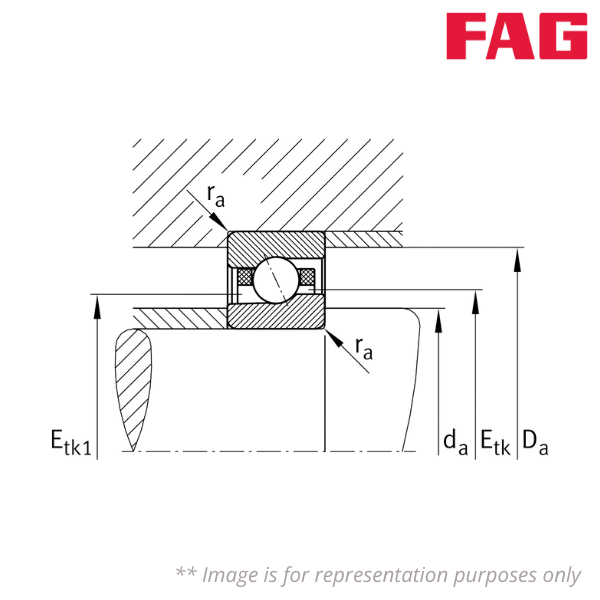

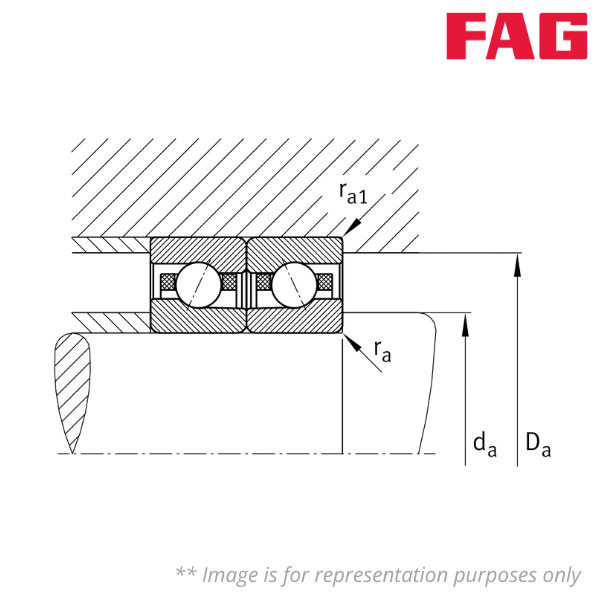

Diameter Shaft Shoulder Clearance - h12
Diameter Shaft Shoulder (da) mm - 72
Shoulder Diameter Outer Ring Clearance - H12
Shoulder Diameter Outer Ring (Da) mm - 93
Basic Dynamic Load Rating, Radial (Cr) N - 20100
Basic Static Load Rating, Radial (C0r) N - 11600
Limiting Speed for Grease Lubrication (nG grease) min⁻¹ - 24900
Limiting Speed for Oil Lubrication (nG oil) min⁻¹ - 36400
Preload Force Light (FV L) N - 90
Preload Force Medium (FV M) N - 237
Preload Force Heavy (FV H) N - 498
Lift-off Force Light (KaE L) N - 262
Lift-off Force Medium (KaE M) N - 707
Lift-off Force Heavy (KaE H) N - 1528
Axial Rigidity Light (Ca L) N/µm - 59
Axial Rigidity Medium (Ca M) N/µm - 85
Axial Rigidity Heavy (Ca H) N/µm - 115
