H924045/H924010 (H924010EA) TIMKEN

Brand - TIMKEN
Item Number - H924045/H924010 (H924010EA) TIMKEN
Also Known As - H924045 - H924010 (H924010EA)
Category - Double Row Tapered Roller Bearing (2TS-DM Type)
Bore Diameter (d) mm - 111.125
Bore Diameter (d) inch - 4.375
Outer Diameter (D) mm - 214.312
Outer Diameter (D) inch - 8.4375
Width (T) mm - 111.125
Width (T) inch - 4.375
Width (B) mm - 104.776
Width (B) inch - 4.125
Dynamic Radial Rating (C1) N - 970000
Dynamic Radial Rating (C1) lbf - 218000
Factor (e) - 0.67
Factor (Y1) - 1
Factor (Y2) - 1.49
Dynamic Radial Rating (90 million revolutions) (C90) N - 144000
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 32500
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 167000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 37500
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 251000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 56500
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 0.87
Maximum Shaft Fillet Radius (R) mm - 1.5
Maximum Shaft Fillet Radius (R) inch - 0.06
Backing Shoulder Diameter (db) mm - 131.2
Backing Shoulder Diameter (db) inch - 5.16
Maximum Housing Fillet Radius (r) mm - 3.3
Maximum Housing Fillet Radius (r) inch - 0.13
Cup Frontface Backing Diameter (Da) mm - 186
Cup Frontface Backing Diameter (Da) inch - 7.32
Weight (kg) - 17.33
Weight (lbs) - 38.21
Outer Spacer - H924010EA
Inner Part Number - H924045
Outer Part Number - H924010

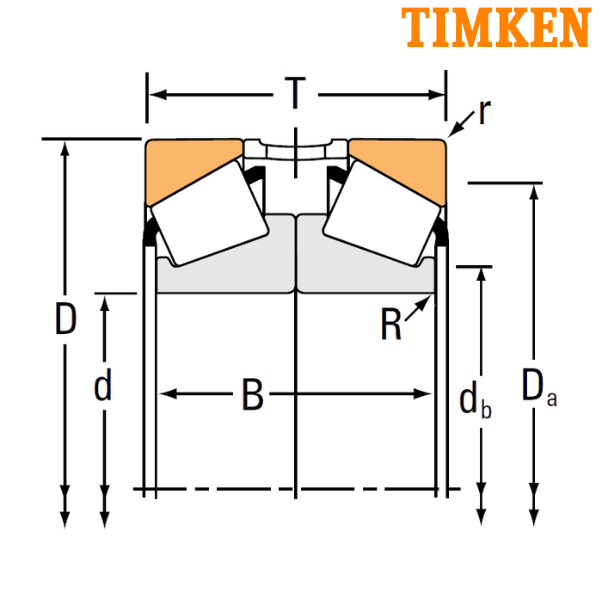

2TS-DM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Direct Mounting

** Images are for representation purposes only
