Description
Brand - RBC
Item Number - H 224 LW RBC
Also Known As - H224LW
Category - Heavy Stud Cam Followers (Hexlube® Socket Head and Sealed)
Nominal Size (inch) - 7
Outside Diameter (D) inch - 7 (+ .000 to - .001)
Roller Width (B) inch - 3.75 (+ .000 to - .005)
Shank Diameter (SD) inch - 3.5 (+ .001 to - .000)
Shank Length (SL) inch - 7.688
Eff. Thread Length (TL) inch - 4.125
Thread Class 2A - 3 1/2- 4
Approximate Weight (lbs) - 59.2
Approximate Weight (kg) - 26.8481
Lube Fitting (F) inch ** - 1/4 NPT
Loc. (A) inch - 1.25
Diameter (G) inch - 0.187
Socket Head Wrench Size (inch) - 1.25
Speed Limit (rpm) - 700
Dynamic Capacity (C) lbf - 79400
Static Capacity (C0) lbf *** - 237800
Maximum Allowable Load (lbf) - 217000
Track Capacity @ 40 Rc (lbf) - 71000
Maximum Clamping Torque (in-lbf) **** - 3000
Hsg. Bore (inch) - 3.5 (+ .0005 to - .0000)
Minimum Boss Diameter (inch) - 4.5
Basic Number - (-224)
Replaces (Direct Interchange)
-------------------------------------------------
McGill - CFH-7 -SB
Description of Suffixes and Prefixes :
--------------------------------------------------------------
H - Heavy Stud (Screwdriver Slot Head)
L - Sealed
W - Hex Head with Hex Lube Feature
NNW - 2 Jam Nuts & Washer
Notes :
------------------------------------------------------

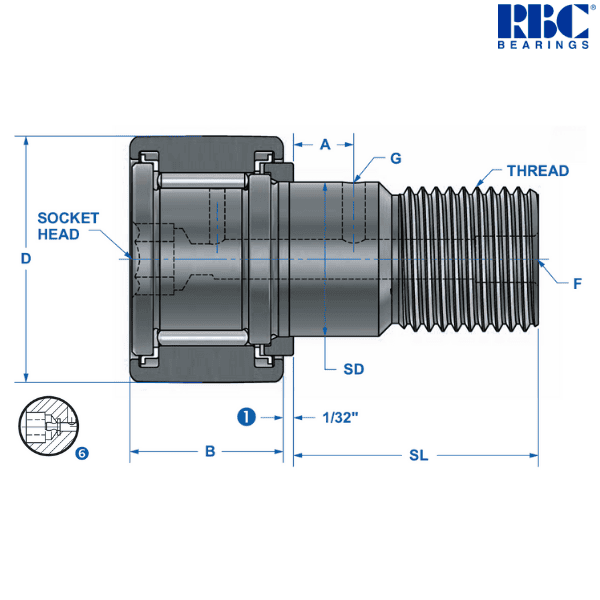

- (1) 1/16" for sizes H 160 LW and larger. (Refer to the Image)

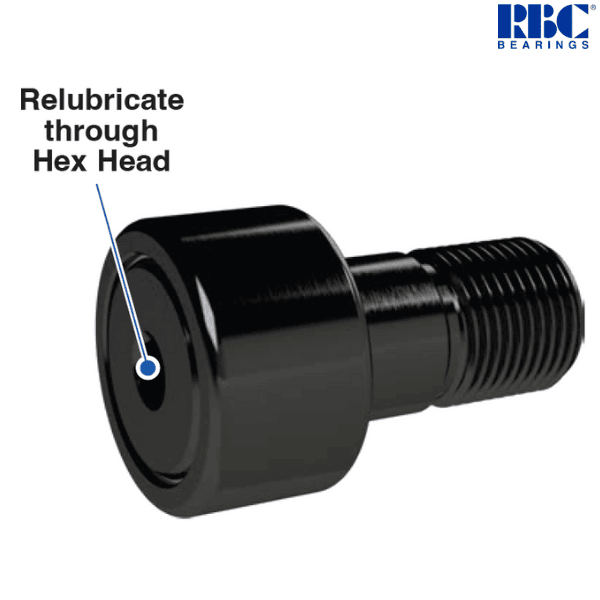

- (6) HexLube® Cam Followers can be regreased through the hex head using a Lincoln #5803 or Alemite #B6783 needle nozzle adapter. (Refer to the Image)
* Sizes H 16 through H 22 and H 16 L through H 22 L have a 1/8" hole at the flange end only
** Sizes H 16 LW through H 22 LW cannot be relubricated.
*** Bearing Static Capacity provided for comparison only.
**** Torque may be doubled for completely dry threads.
***** Images are for representation purposes only
