H 18 LW RBC

Brand - RBC
Item Number - H 18 LW RBC
Also Known As - H18LW
Basic Number - (-18)
Cam Followers with Slotted Head and Sealed - H 18 L
Cam Followers with Slotted Head - H 18
Category - Heavy Stud Cam Followers (Hexlube® Socket Head and Sealed)

Principal Dimensions & Load Ratings (Imperial) :
Nominal Size - 0.5625 inch
Outside Diameter (D) - 0.5625 (+ .000 to - .001) inch
Roller Width (B) - 0.375 (+ .000 to - .005) inch
Shank Diameter (SD) - 0.25 (+ .001 to - .000) inch
Shank Length (SL) - 0.625 inch
Eff. Thread Length (TL) - 0.25 inch
Thread Class 2A - 1/4-28
Approximate Weight - 0.03 lbs
Lube Fitting (F) - * inch **
Socket Head Wrench Size - 0.125 inch
Speed Limit - 5000 rpm
Dynamic Capacity (C) - 770 lbf
Static Capacity (C0) - 1590 lbf ***
Maximum Allowable Load - 700 lbf
Track Capacity @ 40 Rc - 480 lbf
Maximum Clamping Torque - 20 in-lbf ****
Hsg. Bore - 0.25 (+ .0005 to - .0000) inch
Minimum Boss Diameter - 0.34 inch

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.0136 kg

Replaces (Direct Interchange) :
McGill - CFH-9/16-SB

Replaces :
RBC - H18, H18L
McGill - CFH-9/16, CFH-9/16-S

Description of Suffixes and Prefixes :
H - Heavy Stud (Screwdriver Slot Head)
L - Sealed
W - Hex Head with Hex Lube Feature

Description of Possible Suffixes :
NNW - 2 Jam Nuts & Washer

Other salient points to be noted :

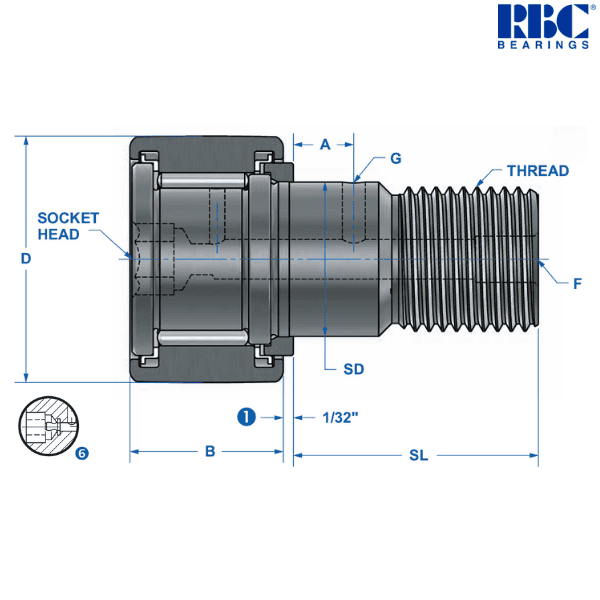

• (1) 1/16" for sizes H 160 LW and larger. (Refer to the Image)

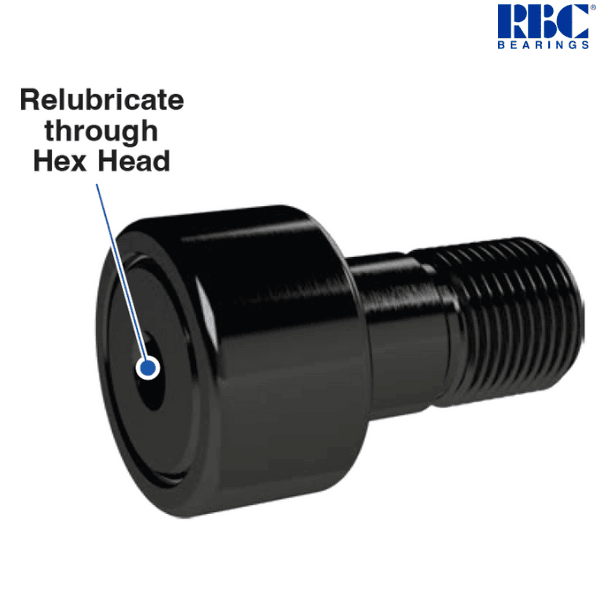

• (6) HexLube® Cam Followers can be regreased through the hex head using a Lincoln #5803 or Alemite #B6783 needle nozzle adapter. (Refer to the Image)

* Sizes H 16 through H 22 and H 16 L through H 22 L have a 1/8" hole at the flange end only.
** Sizes H 16 LW through H 22 LW cannot be relubricated.
*** Bearing Static Capacity provided for comparison only.

**** Torque may be doubled for completely dry threads.

♦ ♦ Images are for representation purposes only
