Description
Brand - RBC
Item Number - H 104 LW RBC
Also Known As - H104LW
Category - Heavy Stud Cam Followers (Hexlube® Socket Head and Sealed)
Nominal Size (inch) - 3.25
Outside Diameter (D) inch - 3.25 (+ .000 to - .001)
Roller Width (B) inch - 1.75 (+ .000 to - .005)
Shank Diameter (SD) inch - 1.5 (+ .001 to - .000)
Shank Length (SL) inch - 2.5
Eff. Thread Length (TL) inch - 1.25
Thread Class 2A - 1 1/2-12
Approximate Weight (lbs) - 5.15
Approximate Weight (kg) - 2.3356
Lube Fitting (F) inch ** - 1/4
Loc. (A) inch - 0.625
Diameter (G) inch - 0.187
Socket Head Wrench Size (inch) - 0.625
Speed Limit (rpm) - 1600
Dynamic Capacity (C) lbf - 17000
Static Capacity (C0) lbf *** - 49900
Maximum Allowable Load (lbf) - 36600
Track Capacity @ 40 Rc (lbf) - 14400
Maximum Clamping Torque (in-lbf) **** - 3000
Hsg. Bore (inch) - 1.5 (+ .0005 to - .0000)
Minimum Boss Diameter (inch) - 2
Basic Number - (-104)
Cam Followers with Slotted Head and Sealed - H 104 L
Cam Followers with Slotted Head - H 104
Replaces (Direct Interchange)
-------------------------------------------------
McGill - CFH-3 1/4-SB
KOYO - CRHSB-52
Replaces
-------------------------
RBC - H104, H104L
McGill - CFH-3 1/4, CFH-3 1/4-S
KOYO - CRH-52
Description of Suffixes and Prefixes :
--------------------------------------------------------------
H - Heavy Stud (Screwdriver Slot Head)
L - Sealed
W - Hex Head with Hex Lube Feature
NNW - 2 Jam Nuts & Washer
Notes :
------------------------------------------------------

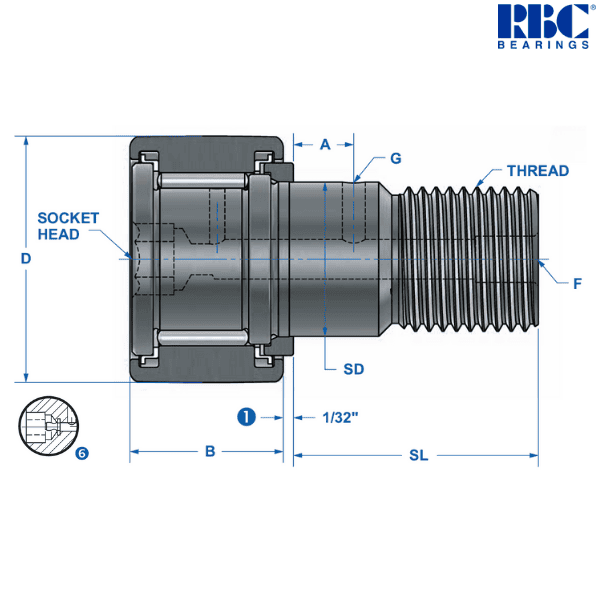

- (1) 1/16" for sizes H 160 LW and larger. (Refer to the Image)

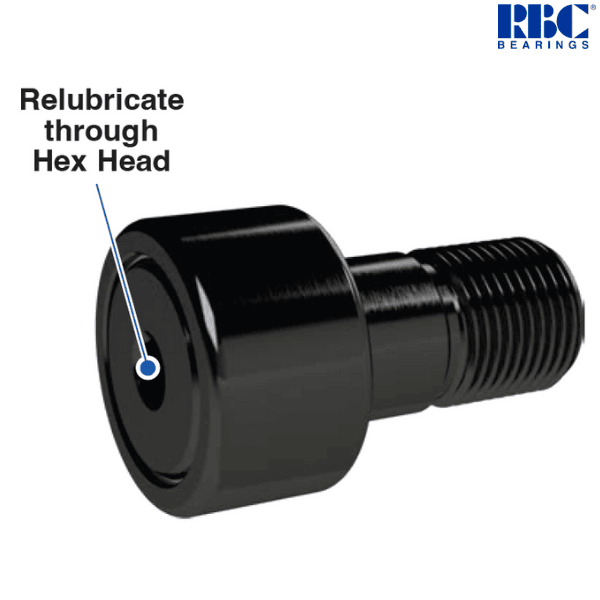

- (6) HexLube® Cam Followers can be regreased through the hex head using a Lincoln #5803 or Alemite #B6783 needle nozzle adapter. (Refer to the Image)
* Sizes H 16 through H 22 and H 16 L through H 22 L have a 1/8" hole at the flange end only
** Sizes H 16 LW through H 22 LW cannot be relubricated.
*** Bearing Static Capacity provided for comparison only.
**** Torque may be doubled for completely dry threads.
***** Images are for representation purposes only
