GU075CP0 RBC

Brand - RBC
Item Number - GU075CP0*RBC
Category - Sealed (Combo) Radial Contact, C-Type Thin Section Ball Bearing

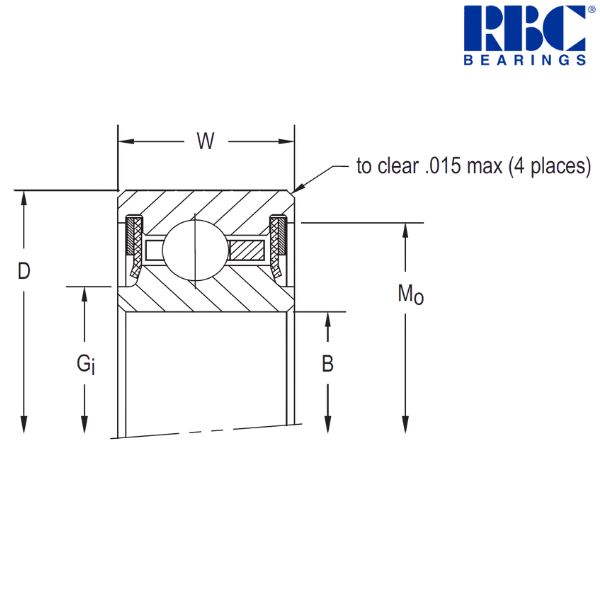

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 7.5 inch
Outside Diameter (D) - 8.25 inch
Width (W) - 0.5 inch
Recess Diameter (Gi) - 7.655 inch
Groove Diameter (Mo) - 8.05 inch
Ball Diameter - 0.1875 inch
Ball Quantity - 63 pcs.
Approximate Weight - 0.99 lbs
Radial Static Load - 3790 lbf
Radial Dynamic Load - 1600 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 190.5 mm
Outside Diameter (D) - 209.55 mm
Width (W) - 12.7 mm
Recess Diameter (Gi) - 194.44 mm
Groove Diameter (Mo) - 204.47 mm
Approximate Weight - 0.449 kg
Radial Static Load - 16860 N
Radial Dynamic Load - 7120 N

Description of Suffixes and Prefixes :
G - 2 combo - PTFE seal & shield
U - Extra Extended Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Shieled Seals

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
