GU055XP0 RBC

Brand - RBC
Item Number - GU055XP0*RBC
Category - Sealed (Combo) 4-Point Contact, X-Type Thin Section Ball Bearing

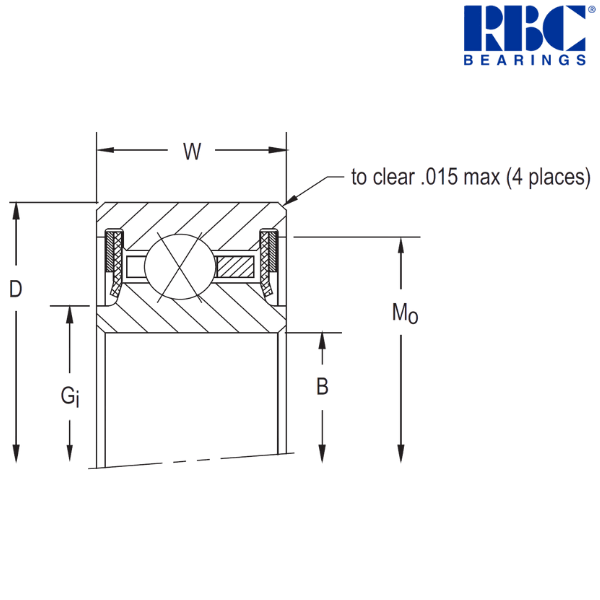

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 5.5 inch
Outside Diameter (D) - 6.25 inch
Width (W) - 0.5 inch
Recess Diameter (Gi) - 5.655 inch
Groove Diameter (Mo) - 6.05 inch
Ball Diameter - 0.1875 inch
Ball Quantity - 47 pcs.
Approximate Weight - 0.74 lbs
Radial Static Load - 2830 lbf
Radial Dynamic Load - 1687 lbf
Thrust Static Load - 7060 lbf
Thrust Dynamic Load - 3120 lbf
Moment Static Load - 8300 lbf
Moment Dynamic Load - 3717 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 139.7 mm
Outside Diameter (D) - 158.75 mm
Width (W) - 12.7 mm
Recess Diameter (Gi) - 143.64 mm
Groove Diameter (Mo) - 153.67 mm
Approximate Weight - 0.336 kg
Radial Static Load - 12590 N
Radial Dynamic Load - 7500 N
Thrust Static Load - 31400 N
Thrust Dynamic Load - 13880 N
Moment Static Load - 940 N
Moment Dynamic Load - 420 N

Description of Suffixes and Prefixes :
G - 2 combo - PTFE seal & shield
U - Extra Extended Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Shieled Seals

* The alphanumeric identification system is used under license.

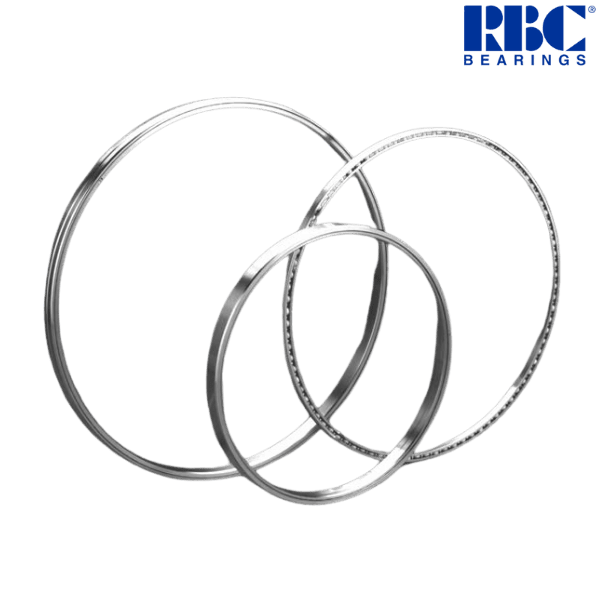

♦ ♦ Images are for representation purposes only
