GU047XP0 RBC

Brand - RBC
Item Number - GU047XP0*RBC
Category - Sealed (Combo) 4-Point Contact, X-Type Thin Section Ball Bearing

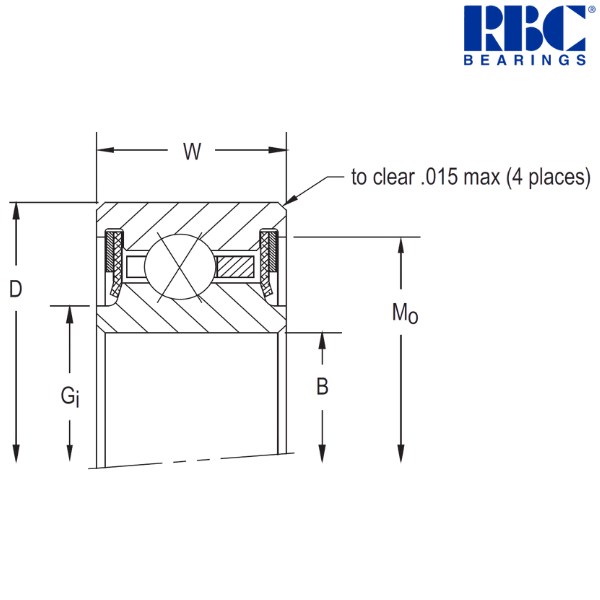

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 4.75 inch
Outside Diameter (D) - 5.5 inch
Width (W) - 0.5 inch
Recess Diameter (Gi) - 4.905 inch
Groove Diameter (Mo) - 5.3 inch
Ball Diameter - 0.1875 inch
Ball Quantity - 41 pcs.
Approximate Weight - 0.65 lbs
Radial Static Load - 2460 lbf
Radial Dynamic Load - 1556 lbf
Thrust Static Load - 6160 lbf
Thrust Dynamic Load - 2970 lbf
Moment Static Load - 6320 lbf
Moment Dynamic Load - 3040 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 120.65 mm
Outside Diameter (D) - 139.7 mm
Width (W) - 12.7 mm
Recess Diameter (Gi) - 124.59 mm
Groove Diameter (Mo) - 134.62 mm
Approximate Weight - 0.295 kg
Radial Static Load - 10940 N
Radial Dynamic Load - 6920 N
Thrust Static Load - 27400 N
Thrust Dynamic Load - 13210 N
Moment Static Load - 710 N
Moment Dynamic Load - 340 N

Description of Suffixes and Prefixes :
G - 2 combo - PTFE seal & shield
U - Extra Extended Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Shieled Seals

* The alphanumeric identification system is used under license.
