GU 62 MT NADELLA

Brand - NADELLA
Item Number - GU 62 MT NADELLA
Category - Guide Rail

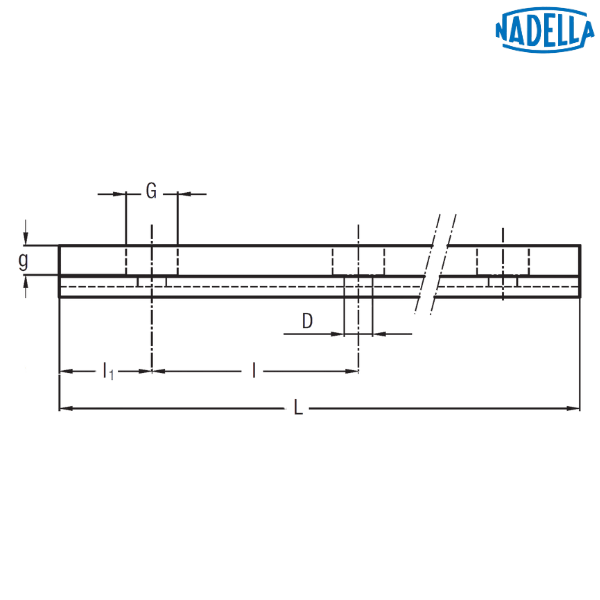

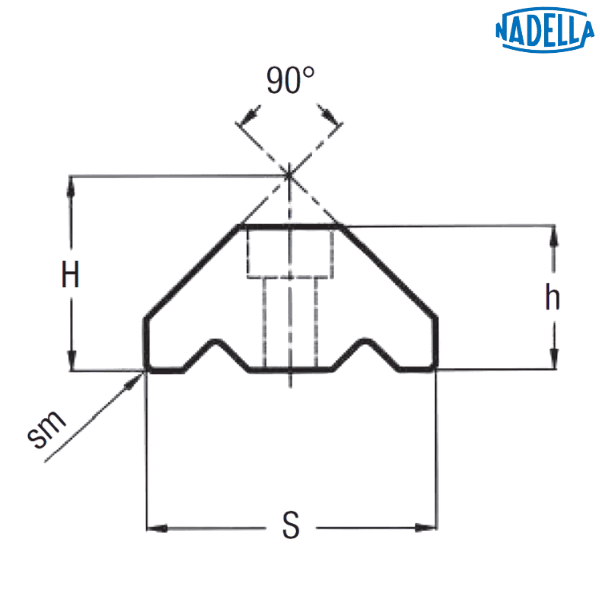

Principal Dimensions & Load Ratings (Metric):
Dimension (H) - 43.5 (± 0.05) mm
Dimension (h) - 32.5 (± 0.05) mm
Dimension (S) - 63.5 (± 0.05) mm
Dimension (D) - 11 (+0.1) mm
Dimension (G) - 18 mm
Dimension (g) - 11 mm
Dimension (sm) - 2 x 45°
Dimension (l) - 120 mm
Dimension (l1) - 30 mm
Weight without Holes - 11.8 kg/m

Description of Suffixes and Prefixes:
GU - Rail in steel
MT - Sandblasted raceways for Heavy-Line and Rolbloc system

Other salient points to be noted:
• Maximum length in single element L = 6000 mm
• Longer rails are made by juxtaposing several elements with ground end

Rail Finishing:
• Drawn, induction hardened and sandblasted tracks (MT)
• Drawn, induction hardened and ground (M)
• Induction hardening on raceways only

Optional Features:
• Ground one end: side of the first hole (1R), side of the last hole (2R)
• Ground both ends (RR)
• Chemical nickel-plating (NW)

Standard Designation Examples:
• GU 62 MT 760
• GU 62 MT 1050
• GU 62 MT 2600
• GU 62 MT 3450
• GU 62 MT 4080
• GU 62 MT 5380

• For Holes according to catalogue, suffix will be SB, e.g. GU 62 MT 3450 SB
• For Finishes to drawing, suffix will be NZ, e.g. GU 62 MT 3450 NZ
• For Without holes, suffix will be NF, e.g. GU 62 MT 3450 NF

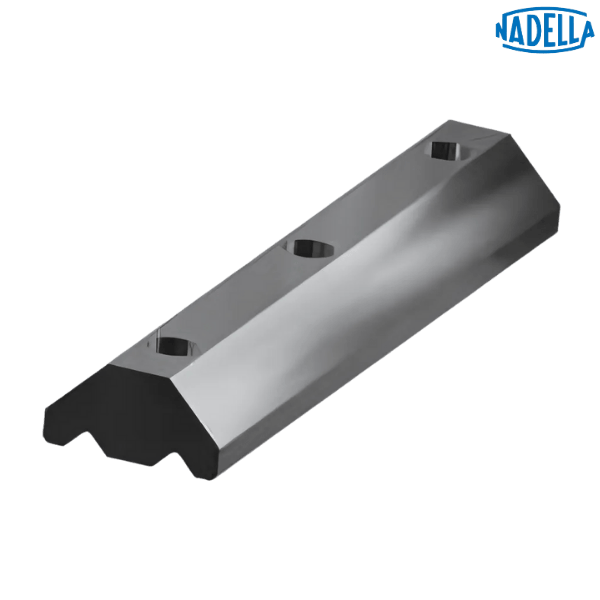

♦ ♦ Images are for representation purposes only
