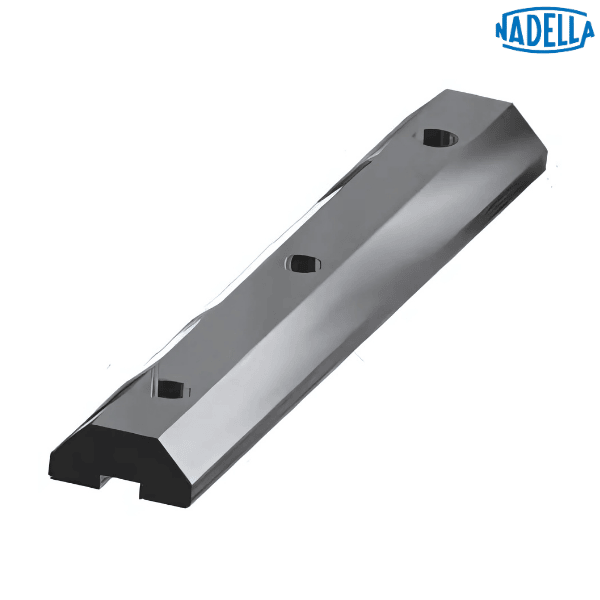

GU 28 M NADELLA

Brand - NADELLA
Item Number - GU 28 M NADELLA
Category - Heavy Line Guide Rail

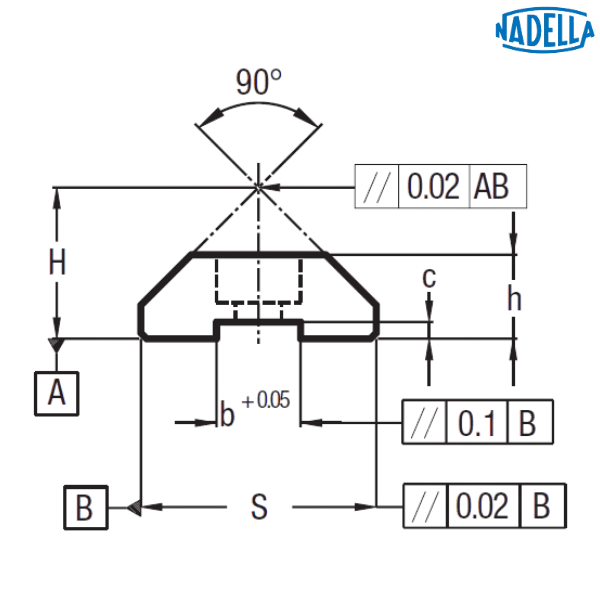

Principal Dimensions & Load Ratings (Metric):
Dimension (H) - 18 (± 0.05) mm
Dimension (h) - 10 (± 0.05) mm
Dimension (S) - 28 (± 0.05) mm
Dimension (D) - 5.5 (+ 0.1) mm
Dimension (G) - 10 mm
Dimension (g) - 5.7 mm
Dimension (b) - 10 (+0.05) mm
Dimension (c) - 2 (± 0.05) mm
Dimension (l) - 90 mm
Dimension (l1) - 30 mm
Weight without Holes - 1.8 kg/m

Description of Suffixes and Prefixes:
GU - Rail in steel
M - Ground raceways for Heavy-Line and Rolbloc system

Other salient points to be noted:
• Maximum length in single element L = 4020 mm
• Longer rails are made by juxtaposing several elements with ground end
• The longitudinal slot, made with + 0.05 tolerance, permits using reference elements SAG for guide positioning

Rails Finishing:
• Drawn, induction hardened and sandblasted tracks (MT)
• Drawn, induction hardened and ground (M)
• Induction hardening on raceways only

Optional Features:
• Ground one end: side of the first hole (1R), side of the last hole (2R)
• Ground both ends (RR)
• Chemical nickel-plating (NW)

Standard Designation Examples:
• GU 28 M 760
• GU 28 M 1050
• GU 28 M 2600
• GU 28 M 3450

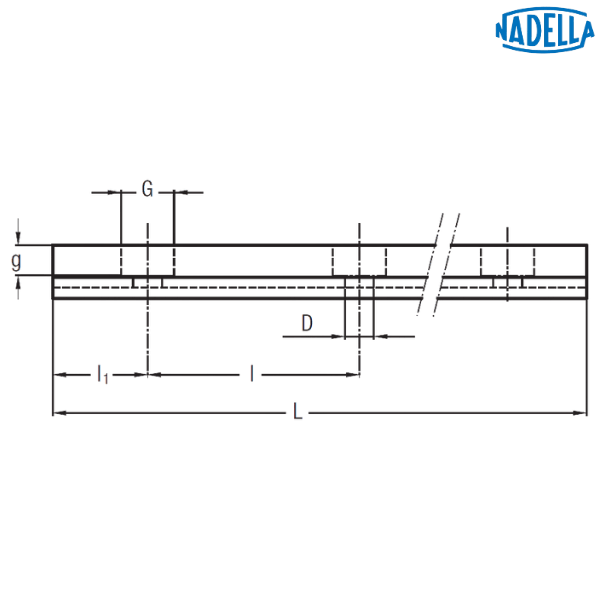

Hole Layout:
• For Holes according to catalogue, suffix will be SB, e.g. GU 28 M 2600 SB
• For Finishes to drawing, suffix will be NZ, e.g. GU 28 M 2600 NZ
• For Without holes, suffix will be NF, e.g. GU 28 M 2600 NF
