Description
Brand - INA
Item Number - GRAE40NPPB FA107 INA
Category - Radial Insert Ball Bearings
Inner (d) MM - 40
Outer (D) MM - 80
Width (B) MM - 43.7
Inner (d) Inch - 1.5748
Outer (D) Inch - 3.1496
Width (B) Inch - 1.7205
Weight (kg) - 0.59
Seal - 2F - Standard Seal for Y-bearings
Lubrication - Standard Lubrication
Special Treatment - I - Lubr Holes on Locating Side
NPP - Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded)
B - Bearing With Spherical Outer Ring
FA107 - Bearing With Lubrication Holes On The Locating Side

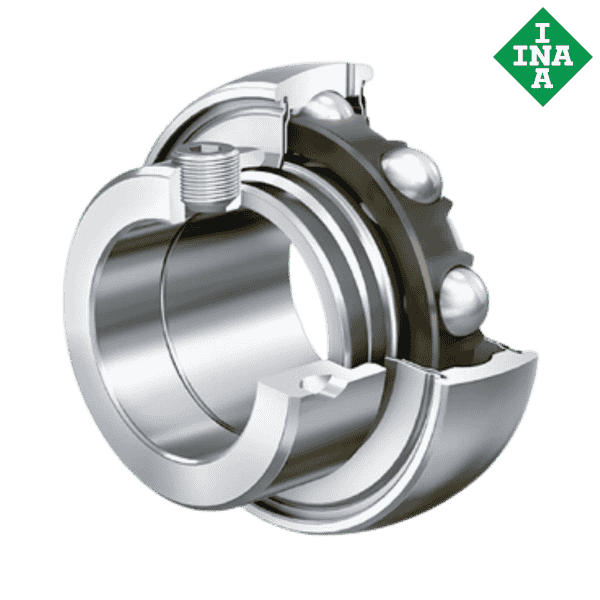

** Images are for representation purposes only
